ETC UFD Phase-Adaptive Dimmer

ETC UDF Dimmer  (ETC Phase Adaptive Dimmer)

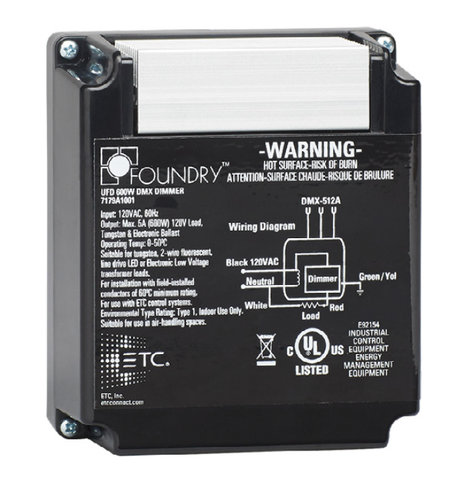

The UFD Phase-Adaptive Dimmer from ETC is designed for Architectural Systems utilizing DMX, with this model being a 600-watt DMX Phase Adaptive Dimmer (120V). This Phase-Adaptive Dimmer provides smooth reverse- or forward-phase dimming for multiple types of lighting loads up to 600 Watts. The Foundry Phase-Adaptive Dimmer accepts DMX control in, and is remotely configurable via RDM. The Phase-Adaptive Dimmer can be wired to individual fixtures or used for zone control, and automatically provides reverse-phase or forward-phase dimming based on the connected load type.

With forward- and reverse-phase capability Foundry Phase-Adaptive Dimmers have the power and finesse to reliably handle nearly any load, including magnetic transformers. The compact footprint, plenum rating and easy-to-install nature of the Foundry power pack design makes it easy to build or expand your system by putting power control exactly where you need it without breaking the bank. The recommended Belden 9729 or Cat5e control wiring means it will fit easily into a contractor’s workflow. Supported cable runs up to 1,000 feet (300m) provide installers with the flexibility to navigate tight ceiling spaces.

ETC offers the Unison Foundry™ lineup of power products which are a line of DMX-controlled, distributed power control products. Foundry products are the ideal partners for Unison Paradigm®, Mosaic® and Echo Control Systems that utilized DMX. These combinations help users create complete lighting and plug-load control packages that provide energy saving features and meet stringent energy codes.

ETC UFD Applications include:

Arena and stadium suites
Office buildings
Conference and meeting rooms
Healthcare facilities
Houses of worship
Classrooms
Hospitality and restaurants
Retail
ETC UFD Features:
600W forward- or reverse-phase dimming for electronic low-voltage loads
300W at 120V of forward-phase dimming for magnetic low-voltage loads*
DMX512A control input
Remote configuration over RDM
Local push-button configuration controls
Plenum rated and designed for simple j-box installation
NOTES:
ETC UFD Specifications:
Ambient Environment:
For indoor use only. Rated for plenum use.
32°F to 104°F (0°C to 40°C) operating temperatures in 5–95% noncondensing humidity.
Electrical Specifications:
Two models are available:
UFD: 120VAC, +/- 10% at 47–63Hz, maximum load 600W
UFD-277: 277VAC, +/- 10% at 47–63Hz, maximum load 600W
Supported load types:
Tungsten
2-wire Fluorescent
LED
Electronic low voltage transformer
Magnetic low voltage transformers (120V only, 300W maximum load).
Compliance:
UL and cUL listed
Conforms to UL 916 (Energy Management Equipment) and UL 2043 (Plenum rated)
Dimensions:
Size (H x W x D): 2 x 3.5 x 3 in
Weight: 0.75 lbs
Notes:
*Dimming magnetic low voltage (MLV) loads can result in damage to the dimmer or the load. Use of 277V Foundry Phase-Adaptive Dimmers with magnetic loads is not recommended nor supported. Please ensure that any transformer is loaded to the specification of the manufacturer.

Transformers should be correctly loaded to their rated current.
