Global Truss SQ-4112-194 | 6.36ft F34 Square Truss Segment | 2in Tubing, 30lb Weight

Global SQ4112194  (Global Truss SQ 4112.194)

F34 Square Truss Segment

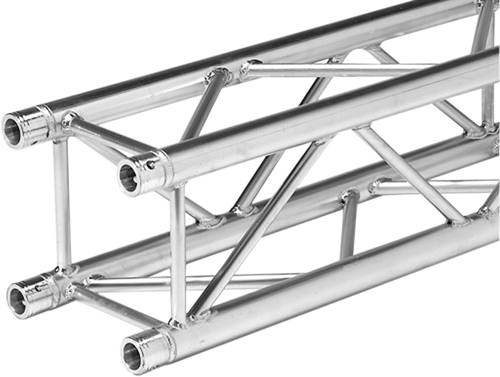

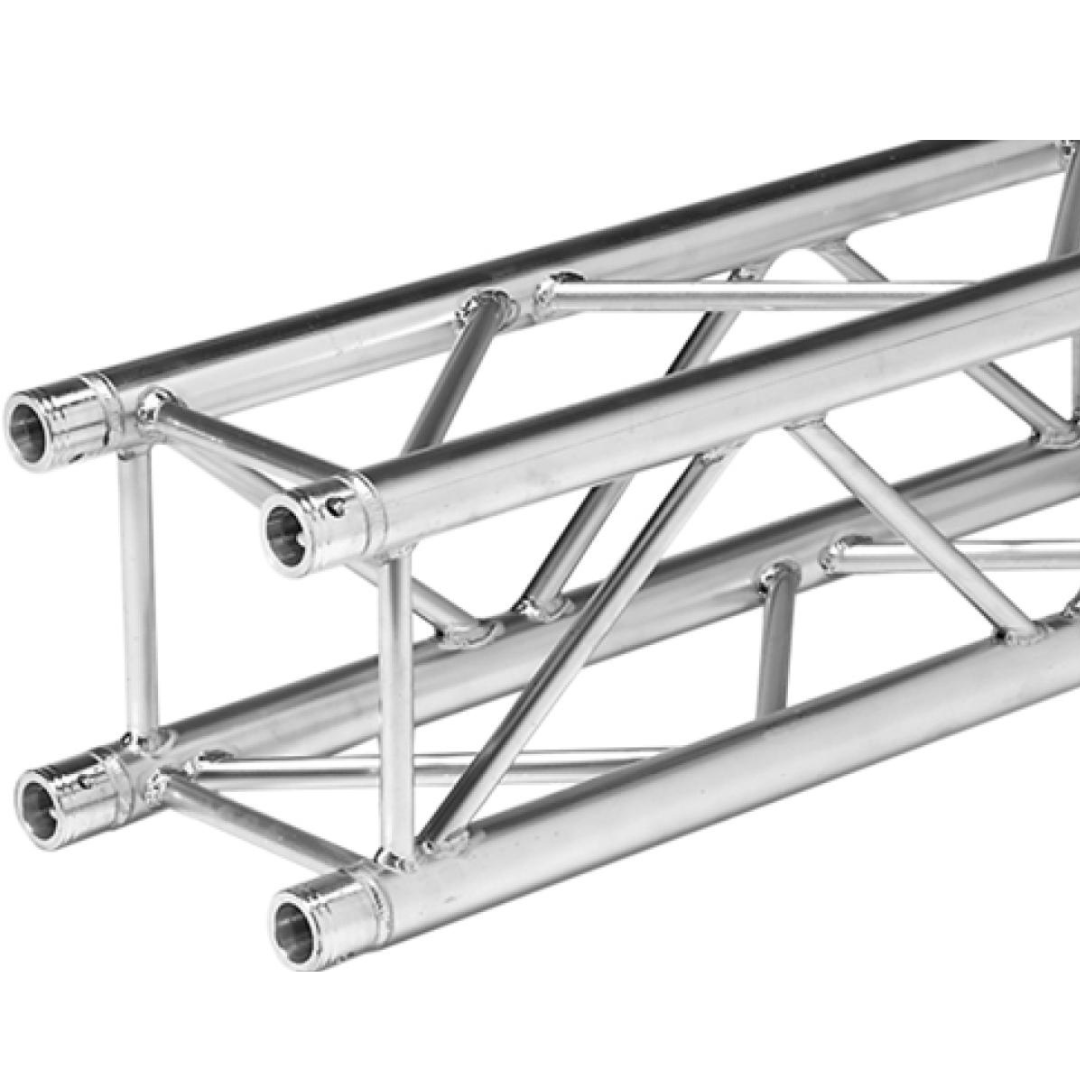

Global Truss SQ-4112-194 is a 6.36-foot (1.94-meter) F34 square truss segment constructed from durable aluminum with 2-inch main tubing and 3/4-inch diagonal bracing. Built for professional staging and lighting systems, it provides a reliable and modular solution for rigging in events, clubs, and installations.

Global Truss SQ-4112-194 Competitive Differences

• 6.36ft length with 2mm wall thickness for strength and structural integrity
• Lightweight aluminum construction — only 30 lb for easy handling

Global Truss SQ-4112-194 Description

The SQ-4112-194 is a core component in the Global Truss F34 square truss system, offering durability and modularity for building custom stage frames, lighting grids, or display structures. With a length of 6.36 feet and outer tubing diameter of 2 inches (50mm), this segment delivers robust performance while maintaining a manageable weight of 30 pounds. Its compact 11 7/16-inch (290mm) width and 2mm thick aluminum walls ensure both rigidity and portability, while the 3/4-inch (20mm) diagonal bracing provides added support under load. This truss is perfect for vertical, horizontal, or angled configurations and can be easily connected with other F34 truss sections using standard conical connectors (not included). Designed for touring professionals, event producers, and installers, the Global Truss SQ-4112-194 is trusted for everything from live concerts to exhibitions and permanent architectural setups.

Model Features

• Precision-engineered aluminum truss for structural support
• Compatible with Global Truss F34 series components
• Supports vertical and horizontal rigging configurations
• Lightweight and easy to transport or install
• Ideal for lighting grids, trade show booths, stage towers, and more

Model Specifications

• Overall Length: 6.36 ft (1.94 m)
• Overall Width: 11 7/16 in (290 mm)
• Main Tube Diameter: 2 in (50 mm)
• Diagonal Bracing: 3/4 in (20 mm)
• Wall Thickness: 0.08 in (2 mm)
• Weight: 30 lb (13.60 kg)
