High End PLAYBACK WING 4

Highend PlaybackWing  (High End PlaybackWing4)

PLAYBACK WING

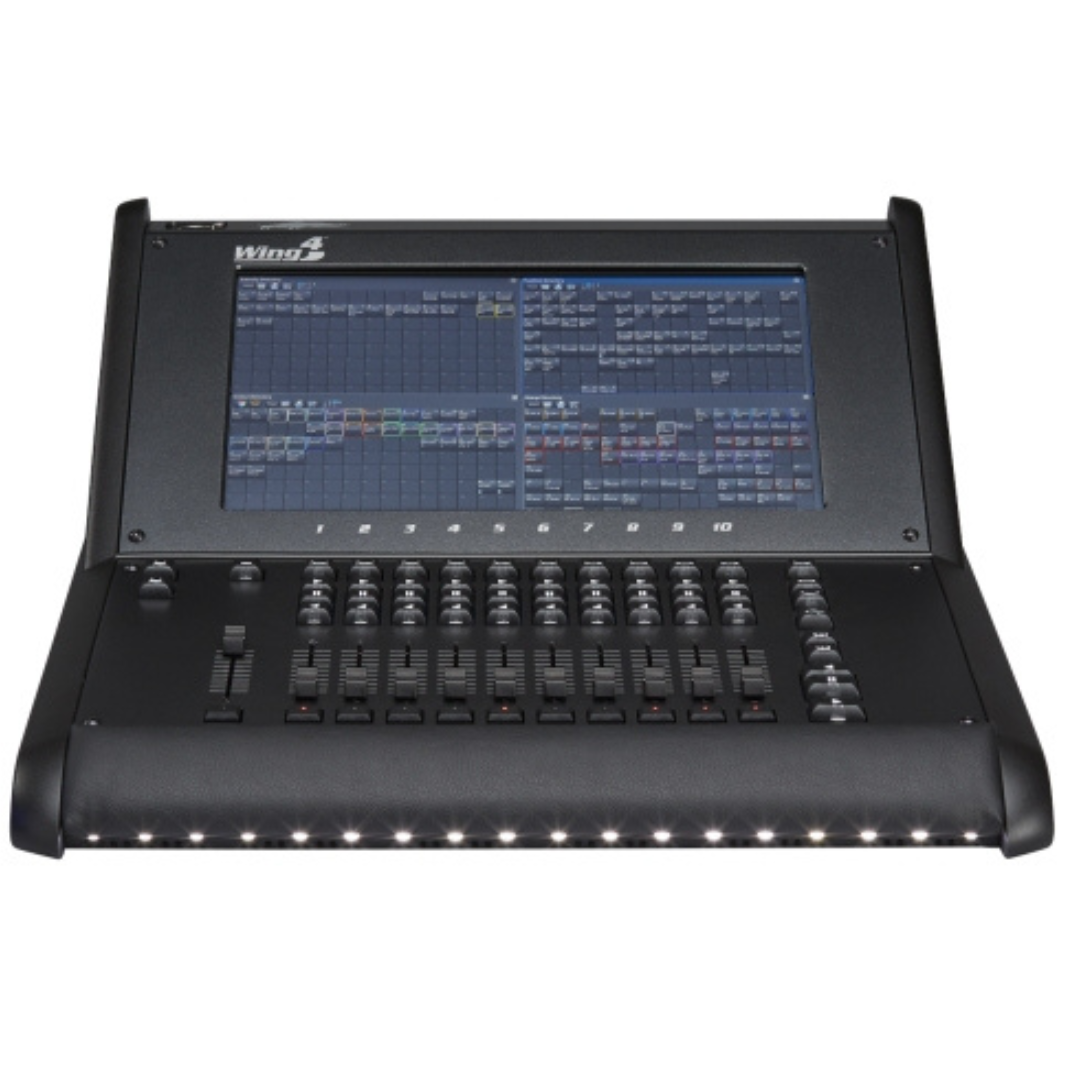

Flying pigs deserve flying faders! The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. The Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC software all benefit from the additional playback hardware the Playback Wing 4 offers.

It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6-inch touchscreen is integrated in the wing allowing you to expand your console using one integrated unit.

FEATURES
USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
Internal 15.6-inch 10-point touchscreen
10 motorized playback faders
Motorized Grand Master
Master Choose column and paging buttons
Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
Integrated dimmable white lap work light
One dimmable white/blue desk light included
USB 2.0 ports: 2 rear
Dust cover included
Custom road case available
Compliance: ETL, CETL, CE

ELECTRICAL
Mains power: 100-250VAC, 50/60Hz, max 100W
Mains connector:  IEC320 C13
Fuse: 1x 5x20mm 5AT fuse

WEIGHTS AND DIMENSIONS
Width: 512mm / 20.2"
Depth: 610mm / 24.0"
Height: 244mm / 9.6"
Weight: 12.5kg / 27.6lb
