High End Super Duper Widget

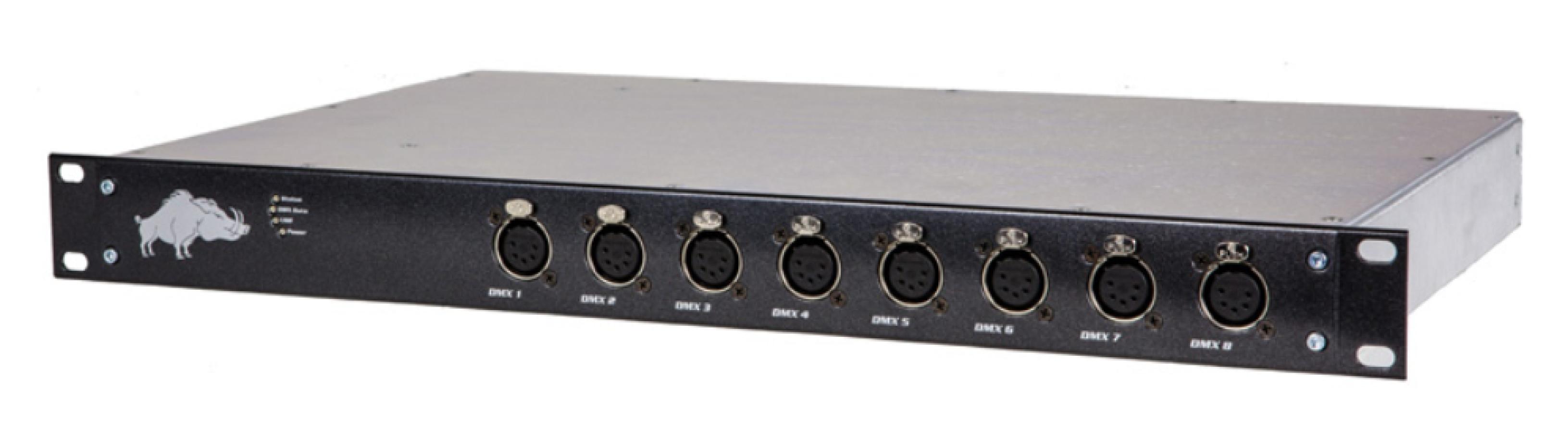

High End Systems Super-Duper Widget  (High End Super Duper DMX Widget)

The USB DMX Super Duper Widget provides eight universes of DMX-512 output from any Hog 4 console or Hog 4 PC (four universes on Road Hog 4).

With Hog 4 PC, attaching USB DMX Super Duper Widgets also unlocks the corresponding universes of Art-Net and sACN.

FEATURES
USB connection to any Hog 4 console as well as Hog 4 PC
19" Rackmount form factor
Eight DMX-512 outputs on 5-pin XLR connectors
Supports up to 4096 output channels
Kensington security slot
One USB input connector
Storage Temperature 20-60°C / 0-140°F
Compliance: ETL, CETL, CE

ELECTRICAL
Mains power: 100-250VAC, 50/60Hz, max 200W
Mains connector:  IEC320 C13
Fuse: 1x 5x20mm 5AT fuse
WEIGHTS AND DIMENSIONS
Width: 483mm / 19.1"
Depth: 277mm / 10.9"
Height: 45mm / 1.75"
Weight: 2.6kg / 5.75lb
