JMaz ATTCO Spot 200 | 200 Watts - 16 Degrees

J Maz Atcco Spot 200  (JMAZ ATTCOSPOT 200)

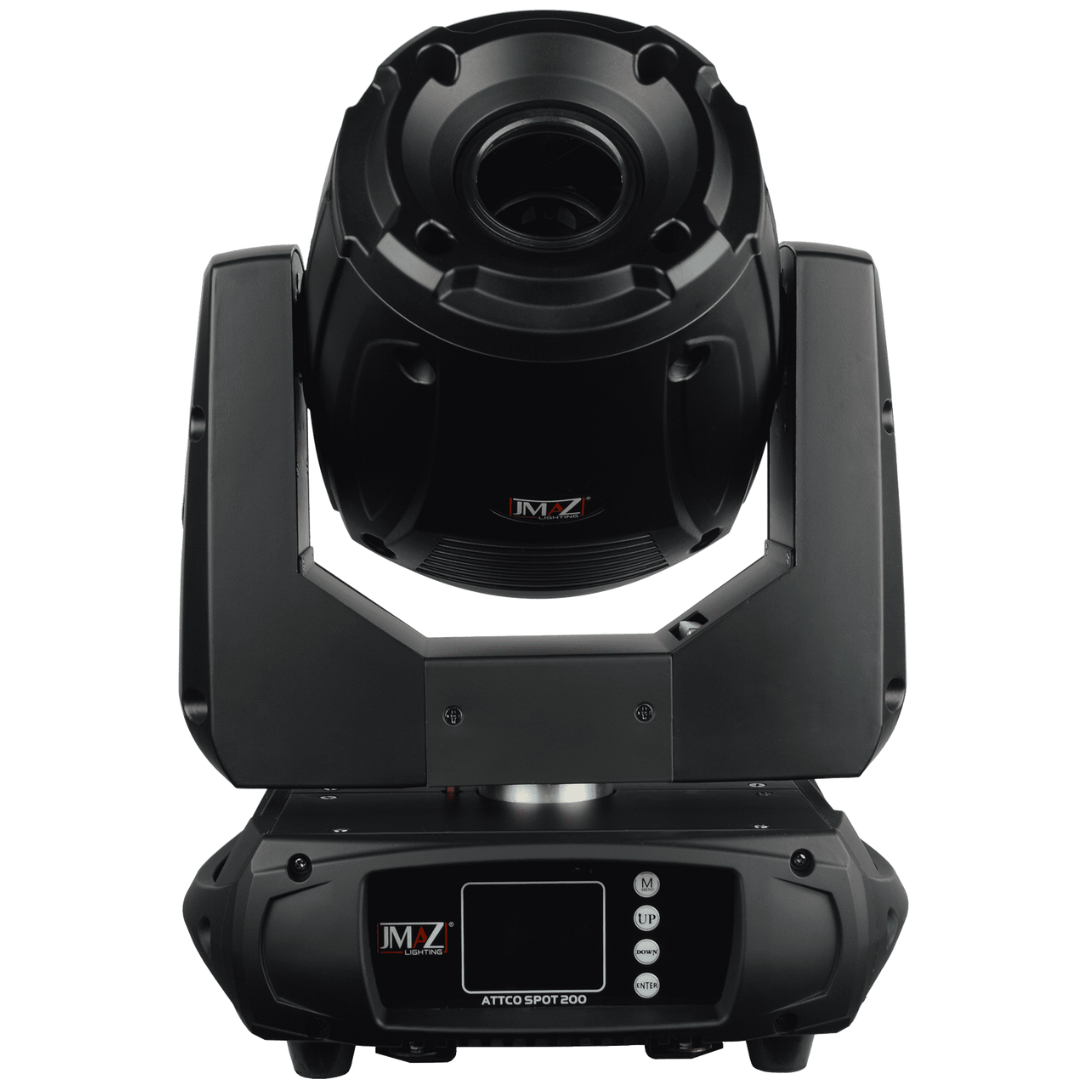

The JMAZ ATTCO SPOT 200 is a compact size, light weight, full function and high brightness moving head with built-in Wi-MAZ wireless DMX technology, using a 200W LED, optical angle 16 degrees. Fast PAN/TILT scanning, low noise, high accuracy. It has rotating gobo wheel, static gobo wheel, color wheel, 3 facet prism, electronic focusing, 0-100% linear LED dimming and strobe effect at different speeds. Suitable for large-scale concerts, TV studios, mobile performances, night shows, weddings, etc.

SPECIFICATIONS:

A 200W white LED lamp, 7500K
Built in Wi-MAZ wireless DMX technology
50000 Hours life span
Input Voltage:AC90-260V 50/60Hz
Power Consumption: 250W
Control Signal:DMX512, master-slave and sound activated or auto operation (9 built-in program)
Control Channel: 14/16 DMX channels USITT DMX-512
Dimensions:12.1”x8.8”x16.5”/30.7×22.4×41.8cm
Packing Dimensions:15”x11”x19.9”/38x28x50.5cm
Net Weight: 22.9lbs/10.38kgs
Gross Weight: 27.7lbs/12.56kgs


FEATURES:

Low power consumption
Built-in wireless DMX technology
Specific high precision glass optic system with 16° projection angle
5m-30m electric focus
3-Facet prism with variable speed and direction
0-100% Linear LED dimmer
25T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
4’TFT LCD display (320*240pix)
POWERCON connector IN/OUT
3-Pin XLR connectors IN/OUT
IP20 protection rating
55dB at 3’dB rating
2*1/4 turn fastening Omega clamp
1* Safety attachment point


MOVEMENT:

8/16 bit smooth and precise resolution for PAN/TILT movement
360°/540°/630° PAN and 90°/180°/270° TILT movement


COLORS:

1 Color wheel with 7 colors plus open


GOBOS:

1 Static gobo wheel with 8 gobos plus open
1 Rotatable gobo wheel with 6 rotatable and interchangeable gobosplus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise


FUNCTION:

PAN/TILT inversion available
Scan position memory, auto reposition after unexpected movement
Improved optics and flat beam field
Variable direction rainbow effect with speed adjustable
Fan cooling system
Constant temperature readout and management function
-35°C ~ 45°C max ambient temperature
