RGBW Moving Head Light Bar for Dynamic Stage and Event Lighting
The JMAZ Centipede 3SIXTY B4 is a compact, high-output moving head bar fixture built to bring dynamic and precise lighting control to clubs, concerts, mobile DJs, and fixed installations. With individually controlled heads that pan and tilt a full 360°, plus RGB SMD LED ring effects, this fixture is a versatile tool for creative lighting professionals.
Full 360° infinite pan/tilt control on each individual head
Individual pixel control and ring effect macros
3.5° beam angle for sharp and focused beams
16-bit RGBW color mixing with tunable CTO from 2500K–8000K
Runs in 4 DMX modes: 25/47/69/90 channels
Supports DMX512 (5-pin), Art-Net, RDM, sACN, and Kling-Net protocols
TRUE1 In/Out power connectors for reliable daisy-chaining
Includes mounting hardware, DMX cable, and power cable
Certified CE, cETL, FCC, and RoHS for safety and compliance
JMAZ Centipede 3SIXTY B4 Description

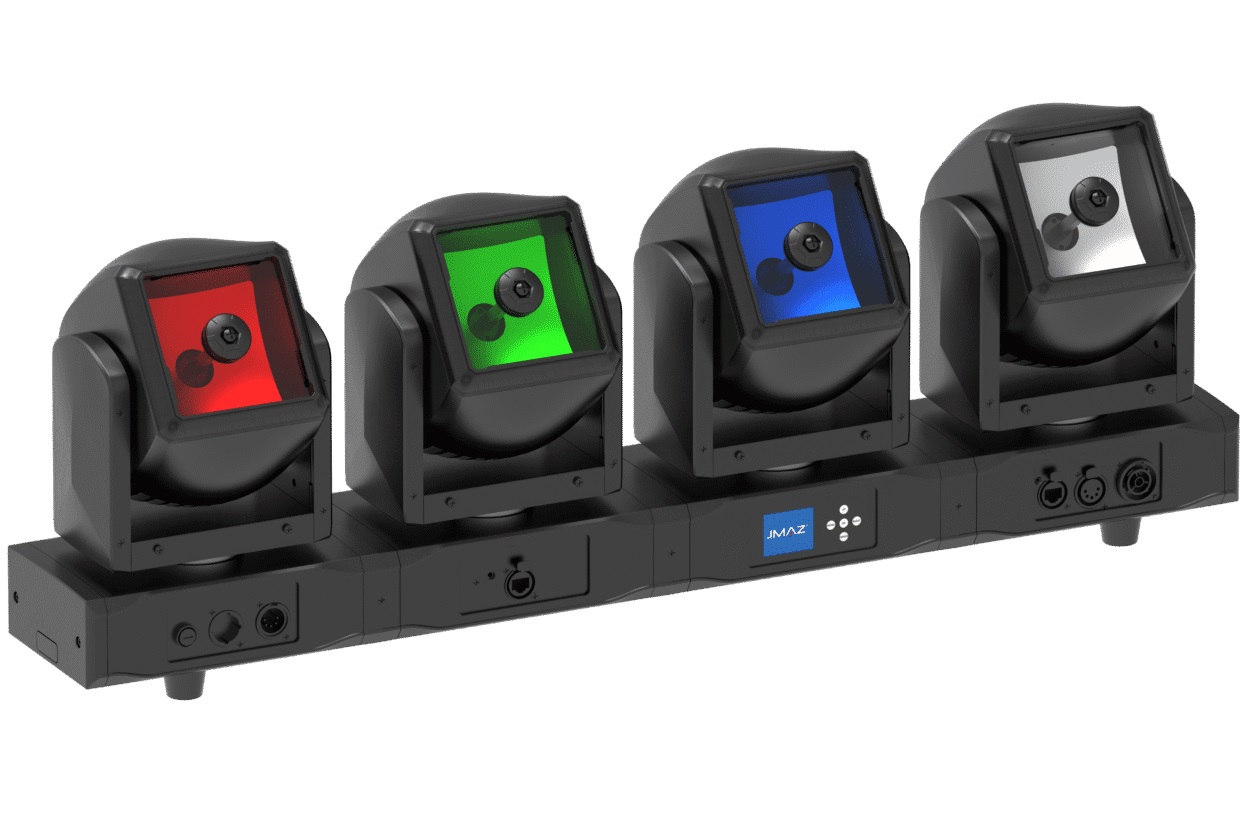

The JMAZ Centipede 3SIXTY B4 delivers high-impact lighting effects in a compact and efficient moving head bar. Each of the four heads contains a 60W RGBW LED with precise 360° pan/tilt movement, allowing designers full control of beam direction and motion. The addition of RGB SMD ring lights around each head enhances visual impact with vibrant color effects and macros that can be triggered individually or simultaneously.
With advanced 16-bit color mixing and an adjustable CTO range from 2500K to 8000K, the fixture offers exceptional color precision. Built-in virtual colors and foreground/background movement macros streamline programming without compromising on creativity. Its compatibility with a wide range of control protocols—DMX512, Art-Net, RDM, sACN, and Kling-Net—ensures seamless integration into professional lighting setups.
Ideal for live events, touring productions, or venue installations, the B4 offers premium features in a rugged and reliable package. TRUE1 In/Out connectors allow for secure power connections, and included hardware ensures fast setup and safe mounting.
Centipede 3SIXTY B4 Features
Four (4) 60W RGBW LEDs
One hundred twenty (120) 0.2W RGB SMD LEDs for ring effects
Individual head pixel control
Individual 360° infinite pan and tilt for each head
Dynamic ring color and effect macros
Built-in virtual colors and movement macros
Foreground and background color control
16-bit RGBW color mixing
Color temperature adjustable from 2500K to 8000K
TRUE1 In/Out power connectors
5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net compatibility
Centipede 3SIXTY B4 Specifications
LED Light Source: 240W total (4 x 60W RGBW LEDs)
Ring Light Source: 24W total (120 x 0.2W RGB SMD LEDs)
Beam Angle: 3.5°
Color Mixing: 16-bit RGBW
CTO Range: 2500K – 8000K
DMX Modes: 25 / 47 / 69 / 90 channels
Control Protocols: 5-pin DMX512, Art-Net, RDM, sACN, Kling-Net
Certifications: CE, cETL, FCC, RoHS
Power Connections: TRUE1 In/Out
Dimensions: 31″ x 6.6″ x 10.5″ (787mm x 168mm x 267mm)
