JMaz FVK3 LED Video Panel (install friendly, cables included)

Jmaz Lighting 3.9mm Install Video Panel  (JMAZ FVK-3 Video Wall Panels)

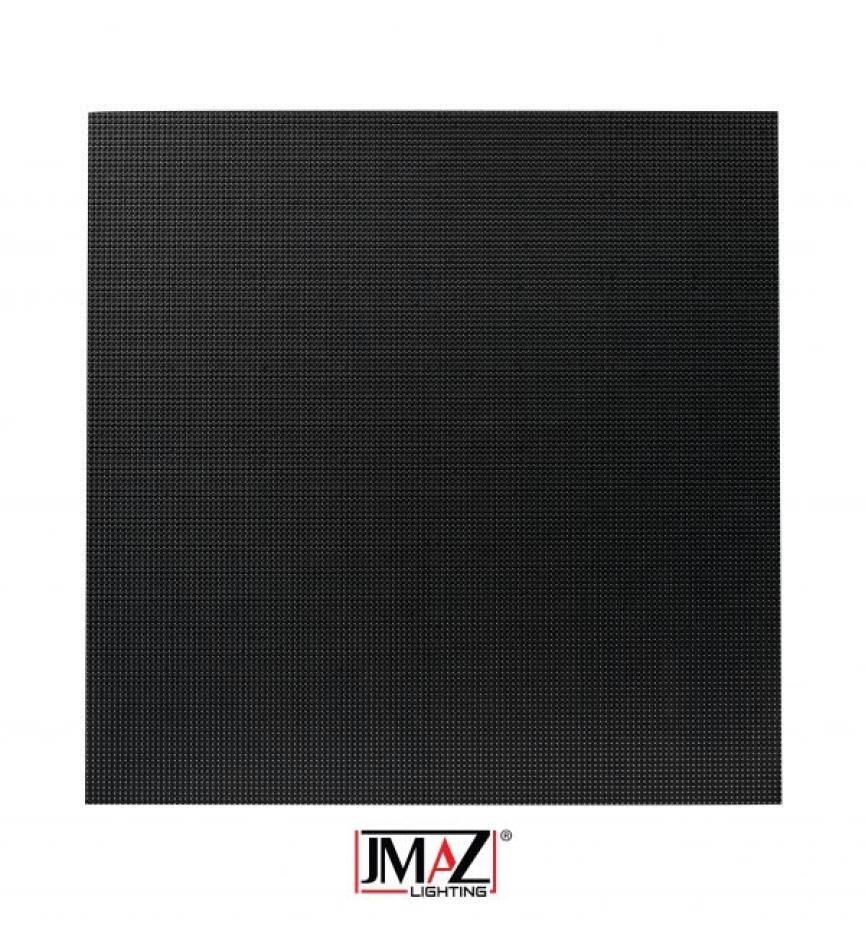

The all-new JMAZ FVK3 has been designed with installers in mind. The die-cast aluminum LED video panel offers a 3.9mm Pixel Pitch. Simplified panels are perfect for permanent mounts because they look fantastic and keep the cost low be stripping out mobile friendly features. Also, these video walls are 100% serviceable from the front, so you don't need to worry about rear access to your install. Design, create and dazzle with the JMAZ FVK3.

•  Pixel Pitch: 3.9mm
•  Refresh Rate: 3840Hz
•  LED Type: SMD2020 (Black)
•  Pixel Configuration: 1R1G1B
•  Module Size (mm): 250 x 250
•  Module Resolution: 88 x 88
•  Pixel Density: 65,536 dots per square meter
•  Cabinet Size (mm): 500 x 500
•  Cabinet Weight: 16 lbs
•  Hanging Support: Yes
•  Max Power Consumption: 600W/m2
•  Avg. Power Consumption: 200W/m2
•  Colors: 16.7 million
•  Gray Scale: 16-Bit
•  Color Temperature: 3000K-10000K
•  Driving Method: 1/22 Scanning
•  Brightness: 900 nits
•  Brightness Control: 256 Grade
•  IP Grade: IP30
•  INCLUDED: Receiving cards and Data/Power Cables for each Panel


IDEAL VIEWING DISTANCE FOR VIDEO WALLS:

2.8mm Pitch = Comfortable Image @ 31ft / Perfect Image @ 15.5ft

3.9mm Pitch = Comfortable Image @ 45ft / Perfect Image @ 22.5ft

(Perfect Image, also known as retina distance, this is a formulated calculation of the distance a person with 20/20 vision must move away from an LED screen to see a coherent image that is not pixelated. Comfortable Image, is an estimate of what would be a comfortable viewing distance for most people. This is a subjective estimate and will take into account variables like a person’s eye sight, resolution of content and type of content.)
