JTS IS-R2/JSS-4A | 2 Mic Wireless System w/ Condenser Capsules

JTS IS-R2/JSS-4A Mic Set  (JTS 2 Mic Wireless System w/ Condenser Capsules)

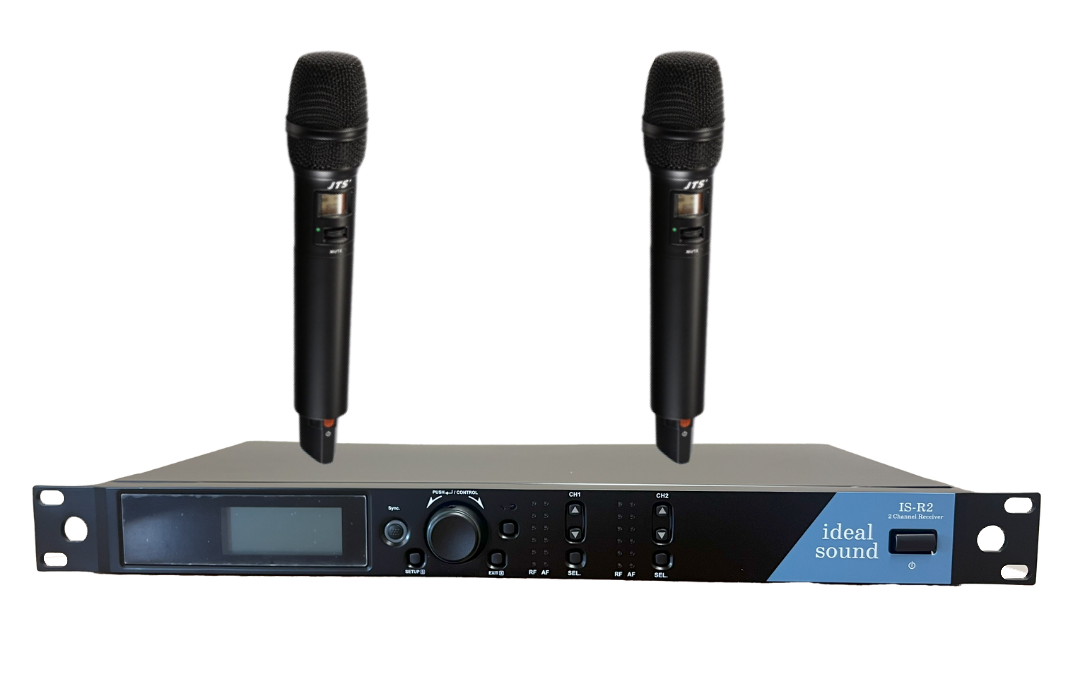

The JTS IS-R2/JSS-4A Wireless System Package is a comprehensive audio solution designed for professional and high-quality wireless microphone performance. This package includes the JTS IS-R2 dual-channel receiver and two JTS JSS-4A handheld transmitters, each equipped with condenser capsules. Here's an overview of each component:

JTS IS-R2 Dual-Channel Receiver: The JTS IS-R2 is a dual-channel wireless receiver that provides reliable and clear audio reception for two wireless microphones simultaneously. It features robust wireless technology with advanced features such as automatic frequency scanning, interference-free operation, and high signal stability. The IS-R2 receiver ensures excellent sound quality and is suitable for a wide range of applications, including live performances, conferences, and events.

JTS JSS-4A Handheld Transmitters with Condenser Capsules: The JTS JSS-4A handheld transmitters are professional wireless microphones designed for clear and accurate vocal reproduction. Each transmitter is equipped with a high-quality condenser capsule, known for its sensitivity and wide frequency response. These microphones are ideal for capturing detailed and natural vocal performances. The JSS-4A transmitters are easy to use and provide stable wireless transmission.

In summary, the JTS IS-R2/JSS-4A Wireless System Package with Condenser Capsules offers a reliable and high-quality wireless microphone solution for various professional audio applications. The dual-channel receiver ensures stable and interference-free operation for two microphones, while the handheld transmitters with condenser capsules deliver exceptional vocal clarity and detail. This package is perfect for live performances, public speaking, events, and other situations where high-quality wireless audio is essential.

SPECIFICATIONS:

IS-R2:

Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470~960 MHz
Remoset Frequency 2.4 GHz Diversity
True diversity Bandwidth 36MHz Signal/Noise Ratio >105dB(A)
Total Harmonic Distortion (Thd) <0.6%@1KHz
Receiving Sensitivity-95dBm，S/N>80dB
Image Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type 1/2λ BNC detachable
Antenna Booster Power DC12V/100mA
Function Display By LCD Contents Of Display Group, channel, frequency, battery level, antenna A/ B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication
Control Functions Power, group, channel, frequency, muting level, button lock, volume, output attenuation (XLR),  scan ,Mix Output Audio Frequency Output Level(MAX) Ø6.3 Phone Jack：+4dBu XLR Jack：+10dBu(Line)、-10dBu(MIC)
Audio Frequency Output Impedance 600Ω
Muting Noise muting and tone code locking
Output Port 2 x balanced XLR jack 2 x unbalanced Ø6.3 jack
Power Supply 100~240VAC
Dimension (Mm) 485mm (W) x45mm (H) x 260mm (L)


JSS-4a (w/ TC-22):

Net Dimension (WxHxD): 50 x 253 x 35.5mm
Net Weight: 93g
Frequency Preparation: PLL Synthesized Control
RF Outputs: High/Low
Stability: < 10KHz
Frequency Deviation: 48KHz (Peak)
Chassis: Aluminium Alloy
LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions: < -50dBC
Audio Frequency Response: 50Hz - 18kHz
Battery: UM3, AA x2
