JTS IS-R2/JSS-4B | 2 Mic Wireless System w/ Dynamic Capsules

J T S IS-R2/JSS-4B Mic Set  (JTS 2 Mic Wireless System w/ Dynamic Capsules)

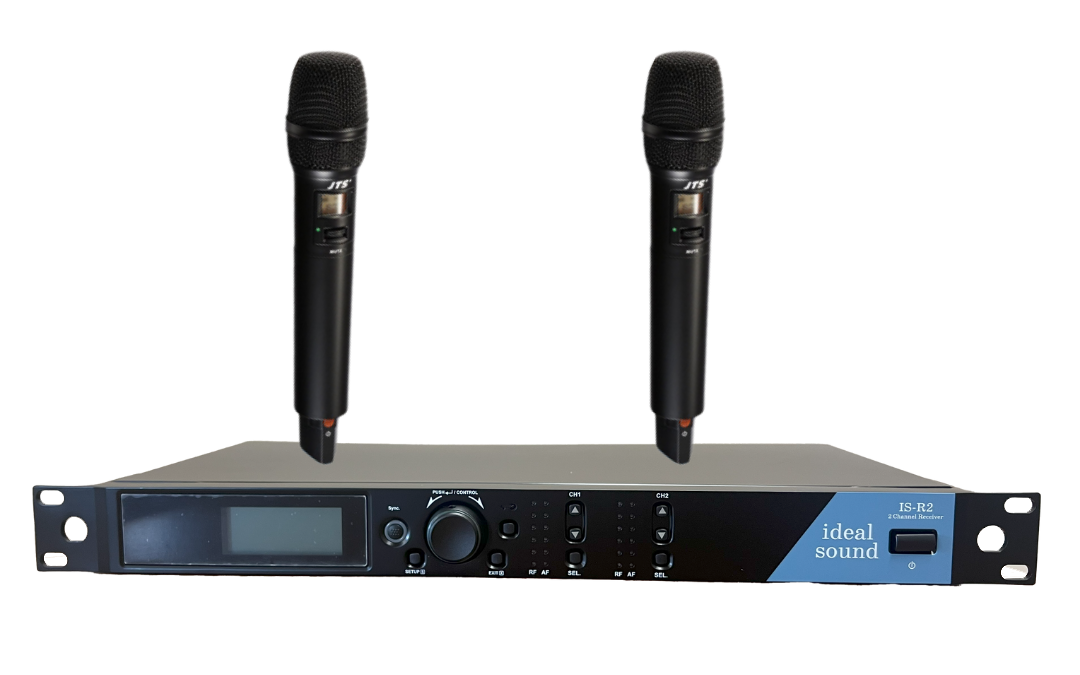

The JTS IS-R2/JSS-4B Wireless System Package is a professional audio solution designed for high-quality wireless microphone performance. This package includes the JTS IS-R2 dual-channel receiver and two JTS JSS-4B handheld transmitters, each equipped with dynamic capsules. Here's an overview of each component:

1. **JTS IS-R2 Dual-Channel Receiver**: The JTS IS-R2 is a dual-channel wireless receiver that provides reliable and clear audio reception for two wireless microphones simultaneously. It features advanced wireless technology with automatic frequency scanning, ensuring interference-free operation and high signal stability. The IS-R2 receiver is known for its excellent sound quality and is suitable for a wide range of applications, including live performances, conferences, and events.

2. **JTS JSS-4B Handheld Transmitters with Dynamic Capsules**: The JTS JSS-4B handheld transmitters are professional wireless microphones designed for robust and clear vocal reproduction. Each transmitter is equipped with a high-quality dynamic capsule, known for its durability and ability to handle high sound pressure levels without distortion. These microphones are ideal for live performances where consistent and powerful vocal delivery is essential. The JSS-4B transmitters are user-friendly and provide stable wireless transmission.

In summary, the JTS IS-R2/JSS-4B Wireless System Package with Dynamic Capsules offers a reliable and high-quality wireless microphone solution for various professional audio applications. The dual-channel receiver ensures stable and interference-free operation for two microphones, while the handheld transmitters with dynamic capsules deliver strong and clear vocal performance. This package is perfect for live performances, public speaking, events, and other situations where high-quality wireless audio is essential.

SPECIFICATIONS:

IS-R2:

Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470~960 MHz
Remoset Frequency 2.4 GHz Diversity
True diversity Bandwidth 36MHz Signal/Noise Ratio >105dB(A)
Total Harmonic Distortion (Thd) <0.6%@1KHz
Receiving Sensitivity-95dBm，S/N>80dB
Image Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type 1/2λ BNC detachable
Antenna Booster Power DC12V/100mA
Function Display By LCD Contents Of Display Group, channel, frequency, battery level, antenna A/ B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication
Control Functions Power, group, channel, frequency, muting level, button lock, volume, output attenuation (XLR),  scan ,Mix Output Audio Frequency Output Level(MAX) Ø6.3 Phone Jack：+4dBu XLR Jack：+10dBu(Line)、-10dBu(MIC)
Audio Frequency Output Impedance 600Ω
Muting Noise muting and tone code locking
Output Port 2 x balanced XLR jack 2 x unbalanced Ø6.3 jack
Power Supply 100~240VAC
Dimension (Mm) 485mm (W) x45mm (H) x 260mm (L)


JSS-4B:

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 93g
