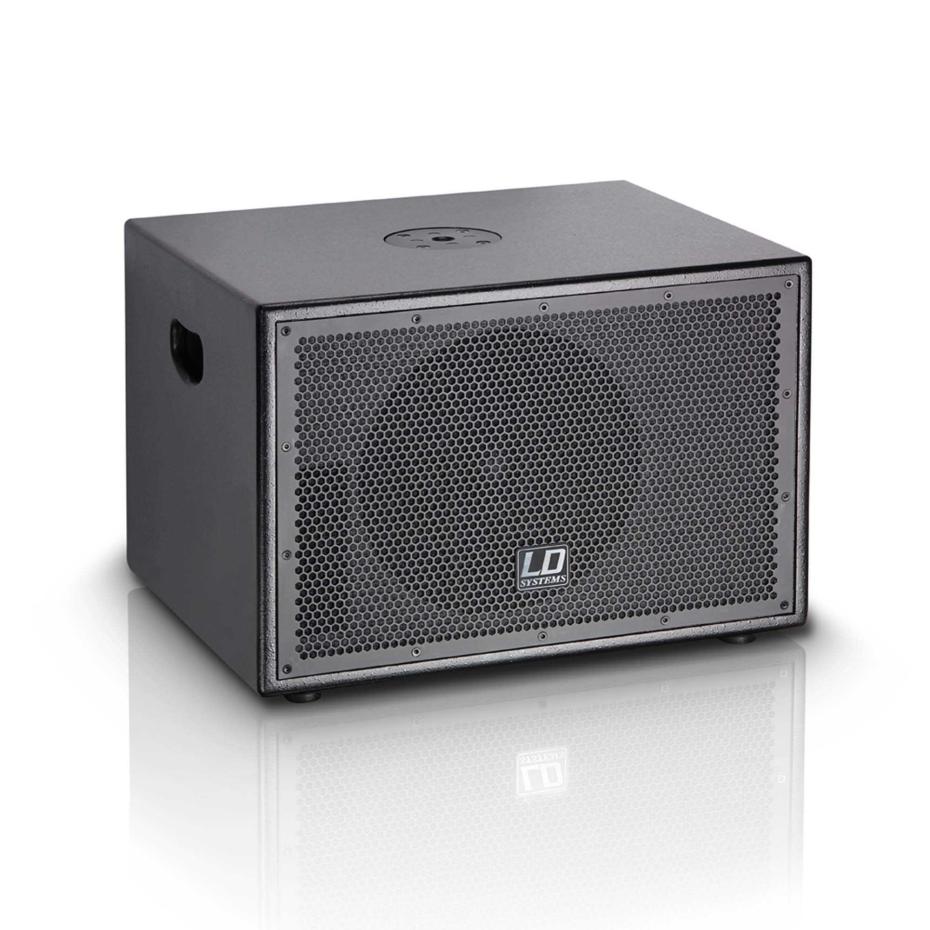

The LDSUB10A is a very compact and powerful 10" subwoofer and a genuine multitalent that can be used as an additional bass cabinet in conjunction with full-range speakers (Stinger 8" or Stinger 10") and is also suitable for permanent installations.
This subwoofer features an integrated 3-channel power amplifier (3 x 120 W RMS), thus permitting connection of additional passive full-range speakers or installation speakers such as those in the LD SAT series.
Possible combinations for permanent installations:
• LDSUB10A + 2 x 4 LDSAT42G2(W)
• LDSUB10A + 2 x 4 LDSAT62G2(W)
• LDSUB10A + 2 x 2 LDSAT242G2(W)
Specifications
• Product number: LDSUB10A
• Product type: Installation Subwoofer
• Type: active
• Low/mid driver dimensions: 10"
• Low/mid driver dimensions (mm): 254mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2"
• Woofer voice coil (mm): 50.8mm
• Amplifier: Class A/B
• Frequency response: 40 - 120Hz
• Max. SPL (continuous): 118dB
• Protection circuits: limiter, short circuit, over voltage
• Input sensitivity: 0.3 V RMSV
• Controls: Subwoofer Volume, mains switch (on/off), Subwoofer Phase Reverse, volume
• Indicators: Power
• Line inputs: 2
• Line input connectors: XLR, 6.3 mm Jack
• Line outputs: 2 x direct output
• Line output connectors: XLR
• Loudspeaker outputs: 2
• Speaker output connections: Terminal posts
• Operating voltage: transformer, 220 V AC - 240 V AC
• Cabinet material: 15 mm MDF
• Cabinet surface: texture paint
• Cabinet construction: vented
• Width: 505mm
• Height: 345mm
• Depth: 425mm
• Weight: 21kg
• Features: ergonomically shaped insert handles, Threaded flange M20
