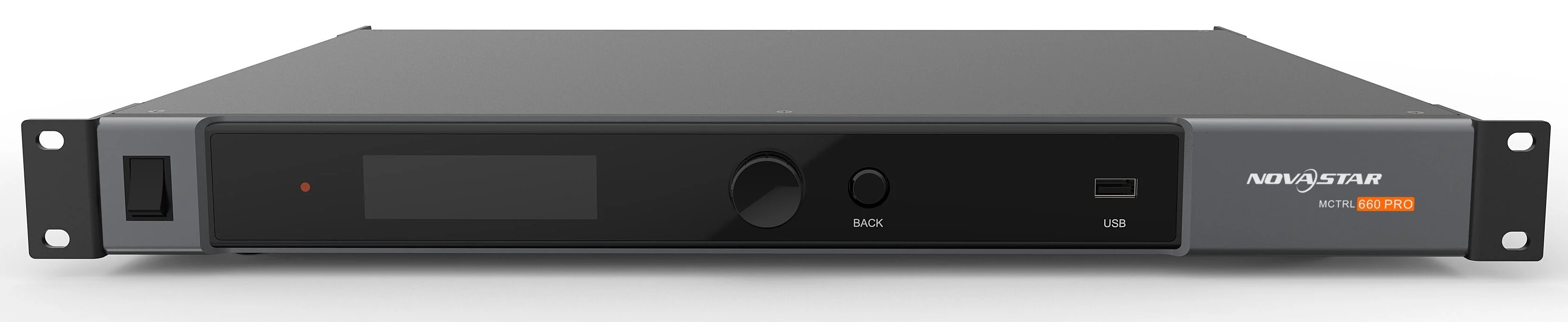

NovaStar MCTRL660

Nova Star MCTRL-660  (NovaStar MCTRL 660)

NovaStar MCTRL660 (LED Display Controller)
Smart Configuration
The NovaStar MCTRL660 is an independent master controller which allows screen configuration at any time without a computer. It offers an LCD menu for independent control of the screen set up process, where configuration can be accomplished in seconds. Outstanding features, ease of use, and affordability makes the NovaStar MCTRL660 a rock solid choice.

Fast and Efficient
It is an advanced video controller that supports high pixel resolution. Colors are gradated at extremely high levels with uniformity and depth that allows the LED display to present life-like imagery. With HDMI/DVI video input and four Ethernet port outputs, a single unit is able to load 2560×960. Multiple units can also be cascaded for uniform control. Order this NovaStar video controller from KPODJ today!

If you like the NovaStar MCTRL660, you may also like the NovaStar MCTRL4K.

MAIN FEATURES
• Product Type: Video Controller
• Capacity: 2.3 Million Pixels
• Nova G4 Engine, Flicker-Free
• Control Method: USB Interface
• Video Interface: HDMI/DVI
• Audio Interface: HDMI/3.5mm
• Video Format: RGB, YCrCb4:2:2, YCrCb4:4:4
• Output Interface: 4x Ethernet Ports
• Bit Depth Of Video Resource: 8/10/12-bit
• Resolution Supported: 2048×1152, 1920×1200, 2560×960
• Resolution Supported: 1440×900 (12-bit/10-bit)
• Cascading Supported
• White Balance Calibration & Color Gamut Mapping
• 18-bit Gray Scale Processing & Presentation
• Certification: CE, ROHS, FCC, UL, EAC

Weight & Dimensions

19 x 15.3 x 3.5" (483 x 389 x 88.2mm)
Weight: 7.9 lbs. (3.6 kg)


Power & Current
100-240VAC, 50/60Hz
Power consumption: 16W, 0.7A


Thermal
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Working humidity: 0% to 95%


Warranty
2-year limited warranty
