NovaStar VX4S-N

Nova Star NX4SN  (NovaStar VX-4S N)

NovaStar VX4SN

Adjustable location and size of PIP
HDMI/external audio input
10bit/8bit HD video source

LED Display Controller

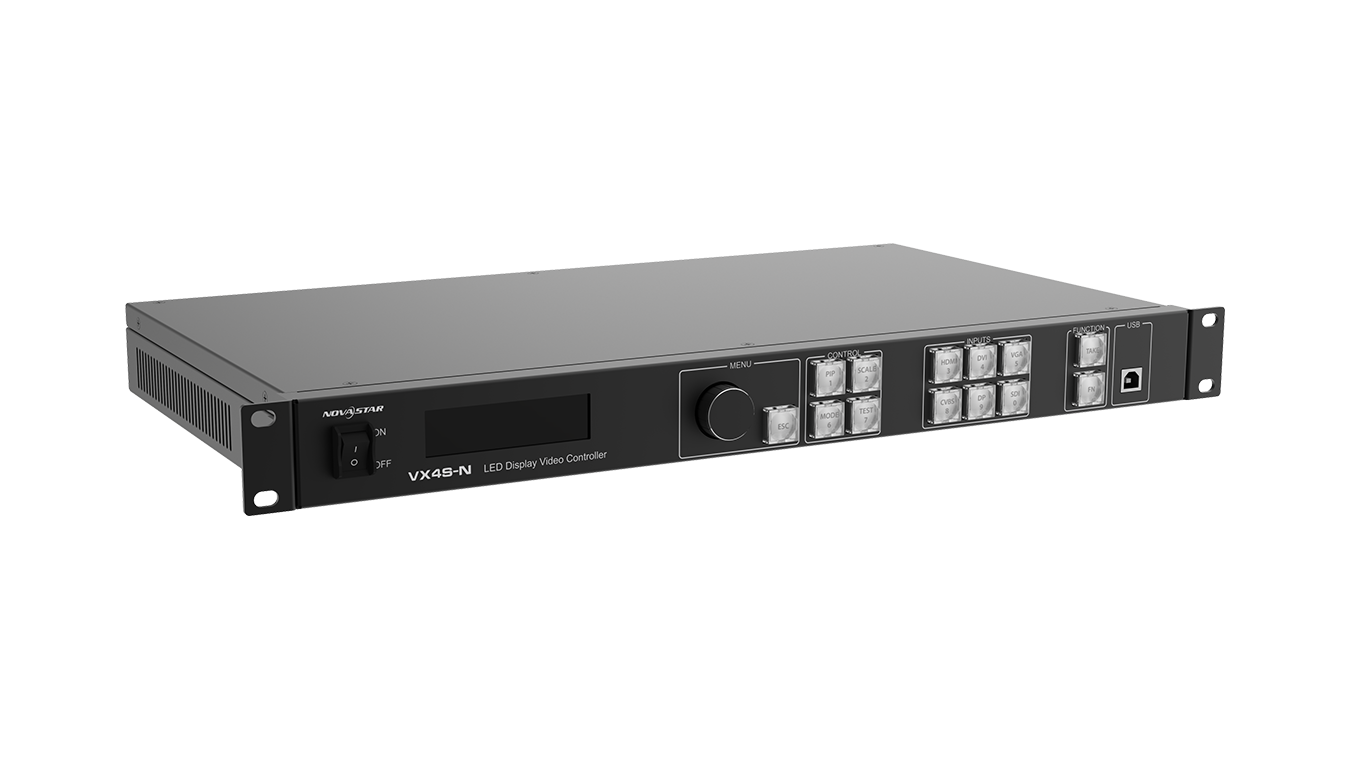

The NovaStar™ VX4S-N is a professional LED video display controller, and direct replacement for the discontinued NovaStar VX4S controller. This new, more cost effective model has all of the exact same features as the VX4S, with the exception of its single CVBS/VGA inputs, and DVI output. The VX4S-N has excellent image quality and flexible image control to greatly meet the needs of the broadcast industry.

The VXS4-N is an LED display controller and a powerful front end processor that supports multiple signal formats and provides up to 2.3 million pixels of LED control. It also supports NovaStar's new generation point-by-point correction technology.

Loading capacity: 2.3m pixels

Large screen, multiple controller support

Point-by-point correction

Fast and efficient

Configurable using 1 knob + 1 button

Innovative and smart configuration

Intuitive display interface

Certification: CE, ROHS, FCC, UL, EAC


CONNECTORS
1 x CVBS
1 x VGA
1 x DVI (IN+LOOP)
1 x HDMI 1.3
1 x DP 1.1
1 x 3G-SDI (IN+LOOP)
1 x USB (Type-A)
2 x USB (Type-B)
4 x Ethernet outputs

POWER
100-240VAC, 50-60 Hz
Power consumption: 25W, 1.5A
Emerson power supply

WARRANTY
3 Years



15.75" L x 9.9" W x 2" H
5.7 lbs
