Pangolin Architect W1500B | 1499W Full-Color RGB IP65 Outdoor Sky Laser

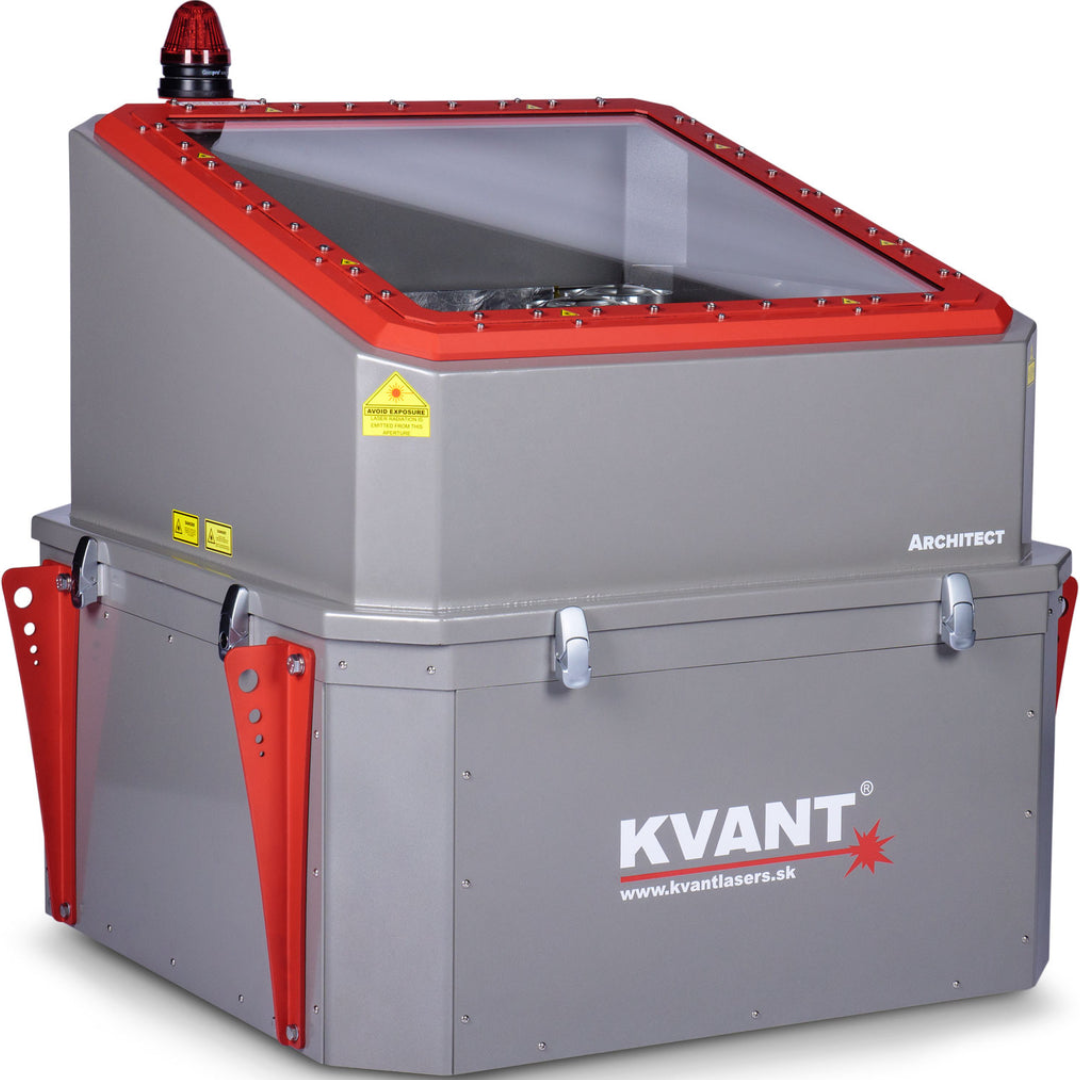

Pangolin Architect W1500B  (Pangolin Architect1500W)

High-Powered Outdoor RGB Sky Laser for Architectural Lighting & Landmark Illumination

The Pangolin Architect W1500 is a cutting-edge full-color RGB sky laser system built to transform buildings, landmarks, and skylines into stunning visual experiences. With a staggering output of over 400,000 lumens and up to 1499 watts of RGB laser power, it delivers dazzling beams visible across vast distances—even in bright, urban environments.

Pangolin Architect W1500 Competitive Differences

• 1499W Full-Color Output: Generates over 403,000 lumens for maximum brightness and beam visibility
• IP65 Weatherproof Rating: Built for all-season outdoor installations, withstanding rain, dust, and temperature extremes
• Precision Color Mixing: Individual red (638nm), green (525nm), and blue (465nm) modules produce deeply saturated RGB tones
• Integrated FB4 with ArtNet & DMX: Supports both networked and standalone control options
• Beam Dimensions & Divergence: Massive 600x600 mm beam size with 3.4 mrad divergence for optimal sky reach
• All-In-One Installation Kit: Includes water chiller, hoses, remote control, flight cases, signal cables, and more

Pangolin Architect W1500 Description

Designed specifically for architectural projection and permanent outdoor lighting, the Architect W1500 uses powerful semiconductor laser diodes to deliver a full-spectrum RGB output. The integrated FB4 hardware offers advanced control over ArtNet, DMX, and manual modes, ensuring compatibility with professional lighting setups and installations. The robust IP65-rated housing, combined with a dedicated external chiller and advanced cooling system, allows for uninterrupted operation in environments ranging from 5°C to 40°C. Whether mounted on rooftops, public monuments, or skyline features, its high-powered beam reaches into the night sky, creating unforgettable visual statements for events, tourism, or civic installations. Laser safety is also a top priority. The Architect W1500 includes a complete suite of safety systems, such as an emission warning beacon, electronic shutter, keyed E-STOP system, and magnetic interlock.

Architect W1500 Features

• 1499W guaranteed RGB laser output
• 403,300 lumen luminous flux
• IP65-rated weatherproof housing
• Full-color RGB semiconductor laser diodes
• Single static beam output with full dimming (100–0%)
• FB4 interface with ArtNet and DMX compatibility
• Manual control via remote control box included
• Safety interlocks, emission delay, E-STOP, and magnetic safety key

Architect W1500 Specifications

• Laser Type: Full-color RGB (semiconductor laser diode)
• IP Rating: IP65
• Luminous Output: 403,300 lumens
• Guaranteed Power Output: 1499W
• Color Modules: 304W Red (638nm), 611W Green (525nm), 584W Blue (465nm)
• Beam Size: 600 x 600 mm
• Beam Divergence: 3.4 mrad (full angle, averaged)
• Cooling System: External water chiller (20 L/min at 20°C)
• Control Interfaces: FB4 (ArtNet, DMX), Remote box with dimming
• Power Requirements (Laser Projector): 3-phase 208/400 VAC, 50-60Hz
• Power Requirements (Chiller): 200-230V, 50-60Hz
• Max Power Consumption: < 6,000W (projector), < 2,200W (chiller)
• Operating Temperature: 5°C to 40°C (full output guaranteed from 5°C to 35°C)
• Projector Dimensions (WxHxD): 36.8" x 33.7" x 36.6" (935 x 855 x 930 mm)
• Chiller Dimensions (WxHxD): 14.8" x 38.4" x 23.3" (377 x 976 x 592 mm)
• Projector Weight: 452 lbs (205 kg)
• Chiller Weight: 152 lbs (69 kg)

What's In The Box

• Pangolin Architect W1500 laser projector
• External water chiller
• 10M water supply hoses
• 10M AC power cable
• 10M signal/control cable
• Remote control box (0–5V RGB + manual dimming)
• E-STOP remote with 10M XLR cable
• 2x safety keys
• USB stick with user manual
• 2x heavy-duty flight cases
• QC certificate
