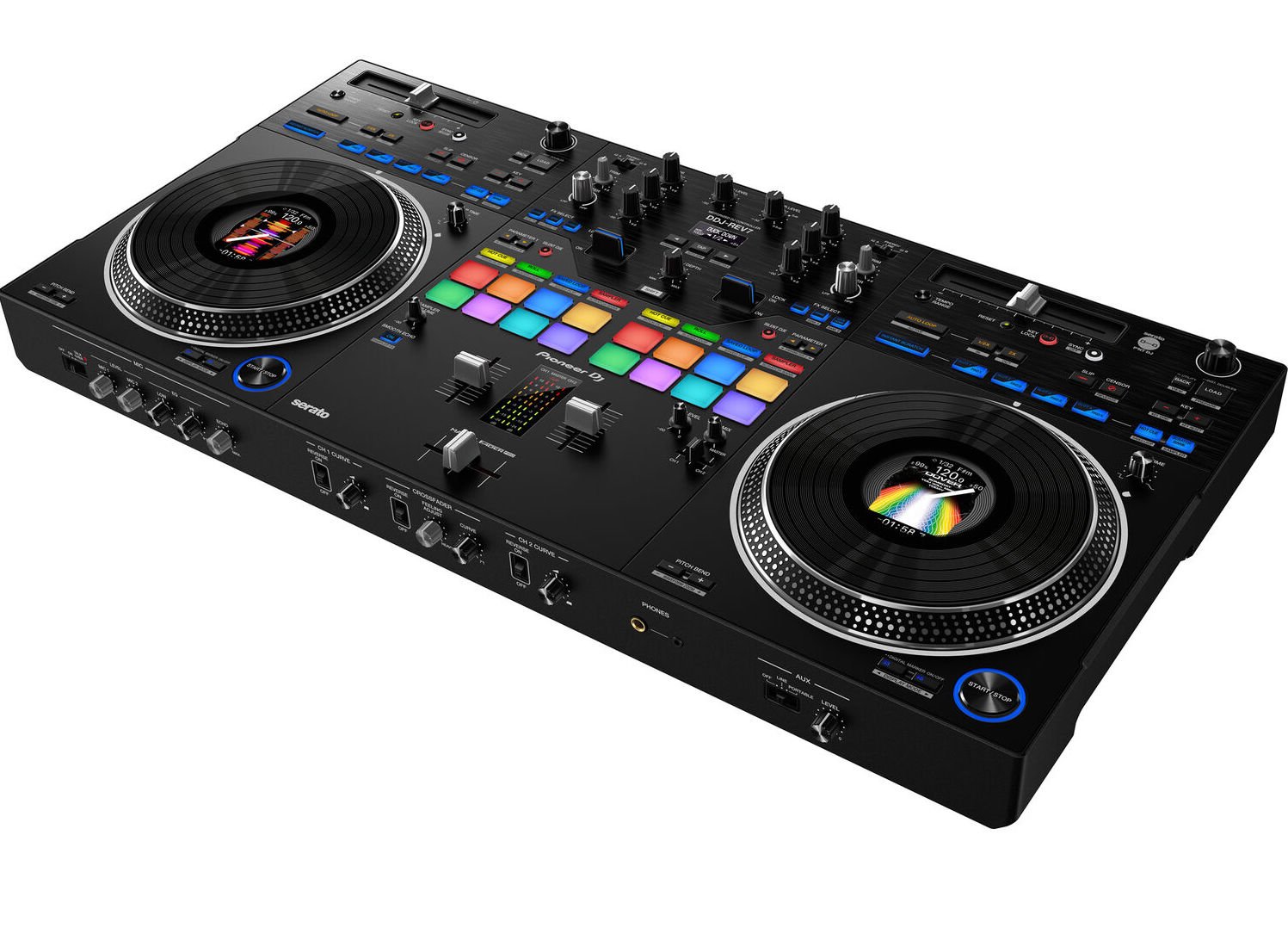

Pioneer REV7
(Pioneer DJ DDJ REV-7)
The Pioneer DDJ-REV7 now officially supports rekordbox and new Serato Stems capabilities!
Features:
Brand-new Motorized, Vinylized Jog: Record-like Feel
At the heart of each deck on the DDJ-REV7 are the new 7-inch motorized jog wheels, featuring the same rotational
stability as a 12-inch turntable and recreating the feel of real vinyl records. The jog wheels acrylic top plate is
finished with a vinyl-like texture for an effortless finger grip. Artists can choose between low- and high-torque
settings and use the two included slip sheets inside each deck — which fit neatly inside the jog wheel — to find
their preferred amount of friction. With the DDJ-REV7, manipulating and fading out sound is simple. Artists can
switch between a rotation speed of 331⁄3 or 45rpm anytime and use the Stop Time setting to adjust how long it takes
for the music to end when pressing pause. Artists can also halt the music immediately or slow it down gradually, as
if the power on an analog deck was turned off.
On Jog Display: Keep an Eye on Essential Information
In the center of each jog wheel is a 3.5-inch LCD display showing important information and removing the need
for artists to switch their gaze between the decks and laptop. The LCD display also features an omnidirectional
viewing angle, allowing artists to see the displayed information from any angle. Artists can turn off the digital
marker indicating the playback position at any time or mark jog wheels with the included stickers if preferred.
Waveform Mode: View the overall waveform of the track on that deck, plus detailed waveforms of the tracks
on both decks side-by-side to make quick, intuitive adjustments. BPM, playback speed, remaining or elapsed
time, digital marker for the playback point (which can be turned off), and the number of beats in a loop are
also available to view.
Virtual Deck Mode: View the virtual deck of Serato DJ Pro and the number of beats to the next Hot Cue
point.
Artwork Display: Display the artwork for the playing track.
DJ Logo Display: Use the Image Transfer Tool for PC/Mac to display a logo or favorite image on each deck.
Instant Scratch: Rapidly Fire Samples with Dedicated Buttons
The DDJ-REV7 features four original scratch samples to trigger with the press of corresponding hardware
buttons. Scratch sounds are built directly into the controller, enabling artists to fire them at any time—even if the
controller isn’t connected to a laptop. If DJs want to use their own samples in the set, they can instantly load
scratch samples from four banks assigned in Serato DJ Pro with the Scratch Bank feature.
Advanced Audio Design: Enjoy High-Quality Audio
With a digital-to-analog converter from ESS Technologies and improvements to the audio design, the DDJ-REV7
achieves the highest sound quality of any Pioneer DJ controller. Unwanted noise commonly created by on-board
power supplies has been reduced for a purer audio experience.
Magvel Fader Pro: Scratch Freely
Artists can scratch with style and confidence with Pioneer DJ’s signature Magvel Fader Pro. Aside from its highly robust design, the fader is customizable with various settings, allowing DJs to find the right feel for their style.
22 Built-in Beat FX Including Three New Additions: Dynamically Change The Sound of Tracks
Artists can add drama to track transitions with three brand-new Beat FX. In total, there are now 22 Beat FX, which
can be triggered with the dedicated controls. The new Beat FX include:
Duck Down: A roll effect fading out while lowering the pitch.
Fill Out: A roll effect forming with a changing rhythm pattern and fading out with echo.
Helix Out: An effect sampling the input sound and repeatedly fades it out like a reverb, while increasing the
playback speed and pitch.
DJs can pull and hold the effect levers down to apply Serato DJ Pro effects in short bursts or push them up to
lock effects. Artists can also instantly trigger effects saved in four FX Banks and edit them via the Setting Utility on
a PC/Mac. While using an effect, artists can trigger up to six more from Serato DJ Pro. The DDJ-REV7 also has
five popular Sound Color FX for artist experimentation.
Plug and Play Compatibility with Serato DJ Pro: Enjoy Free Use of the Software
After Serato DJ Pro installation on a PC/Mac, artists connect the DDJ-REV7 controller via the supplied USB cable
to start DJing. Artists can enjoy tactile control of various features and effects in the software by manipulating the
controller’s buttons, knobs, faders and jog wheels. A Serato Pitch 'n Time DJ Expansion Pack voucher is included,
which enables key shifting and key syncing with high audio performance.
Portable, Sophisticated Design: Take your Performances Anywhere
The DDJ-REV7 is solid and robust, yet lightweight enough to grab by the handles on the chassis and carry to the
next gig. Contrasting matte and hairline finishing in different sections of the aluminum top plate creates distinction
between the deck and mixer sections, recreating the layout of a traditional turntable and mixer setup, while the On
Jog Displays mimic the label in the center of a vinyl record.
Other Features
Silent Cue: Switch on Silent Cue and avoid the sound of the music speeding up as the platter spins.
Artists simply select a Hot Cue and hit play on the deck, and it will sound the same as hitting a cue point
on a DJ player.
Smooth Echo: Assign the Smooth Echo effect to a selection of controls, e.g., a fader or pad, and the
echo will trigger as soon as the relevant assigned control is moved.
Specifications:
Configuration Dual-Deck
Number of Channels 2 x Stereo
2 x Mic
Platter/Jog Wheel 2 x 7.0" / 17.8 cm Touch-Sensitive
Faders 2 x Channel Level
1 x Crossfader (Replaceable)
2 x Pitch
Display None
Sample Pads 8 x Assignable per Deck (Backlit)
EQ Channel EQ:
Hi
Mid
Low
Mic EQ:
Hi
Low
Performance Controls Band-Pass Filter, Beat Sync, Brake, Cues, EQ, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Pitch Control, Scratch, Search, Slip Mode, Tempo Control, Transport Controls, Vinyl Mode
Built-In Effects Delay (Tap), Echo (Type Unspecified), Flanger, Phaser, Reverb
Sample Rates 44.1 kHz
Bit Depths 24-Bit (A/D Conversion)
32-Bit (D/A Conversion)
Connectivity
Audio Inputs 2 x Stereo RCA TS Line/Phono Input
1 x Stereo RCA TS Aux Input
1 x Combo XLR-1/4" TRS Mic Input
1 x 1/4" TRS Mic Input
Audio Outputs 1 x 1/4" TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Headphone Output
2 x XLR 3-Pin Master Output
1 x Stereo RCA TS Master Output
2 x 1/4" TRS Booth Output
Other I/O 1 x Phono Ground Terminal
USB 2 x USB Type-B
Wireless Connectivity None
Media Card Slots None
Internal Drive Bays None
Performance
Frequency Response 20 Hz to 20 kHz
SNR USB:
110 dB
Line:
95 dB
Phono:
84 dB
THD USB:
0.003%
Line:
0.005%
Phono:
0.017%
Compatibility
Included Software Serato DJ Pro
Serato Pitch 'n Time DJ
OS Compatibility Windows 7 / 8.1 / 10
macOS 10.10 / 10.11 / 10.12 / 10.13
Processor Requirement 2.0 GHz Intel Core
RAM Requirements 4 GB
Storage Requirements 250 MB
Minimum Display Resolution 1280 x 768
Required Hardware Available USB 2.0 Port
Power
Power Requirements AC/DC Power Adapter (Included)
Power Supply Output 24 VDC at 1 A
AC Input Power 100 to 240 VAC, 50/60 Hz
Physical
Operating Humidity 5 to 85%
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions (W x D x H) 28.8 x 15.0 x 3.2" / 0.7 x 0.4 x 0.1 m
Weight 23.6 lb / 10.7 kg
