ProX XC-XLRF-3P | 3-Pin Male XLR End

PRO X XC-XLRF3P  (ProX XCXLRF3P Raw XLR End)

Durable 3-pin XLR male connector for custom mic cable builds

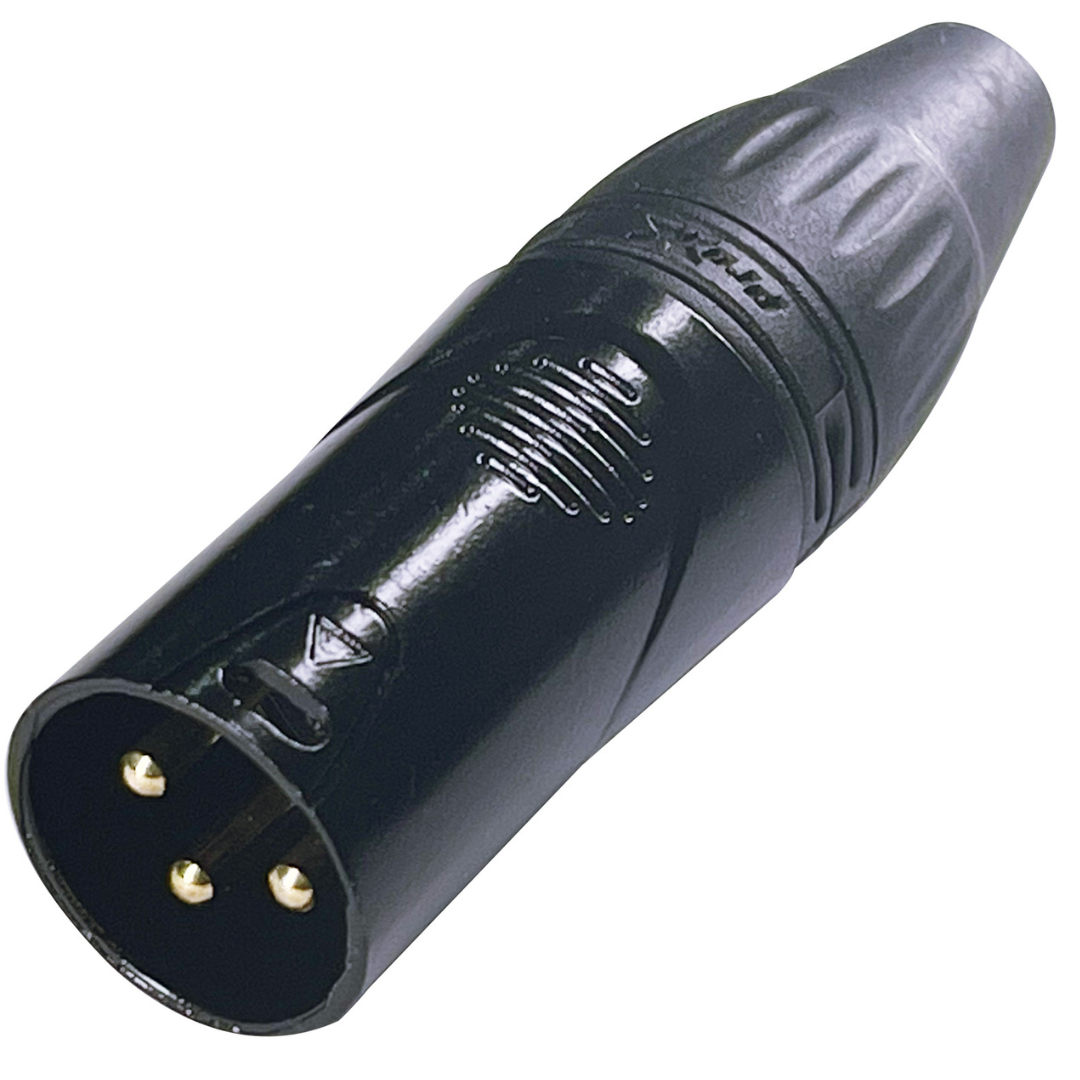

The ProX XC-XLRF-3P is a rugged and high-performance 3-pin male XLR connector designed for soldered microphone cable applications. With a solid die-cast zinc housing, nickel-plated finish, and balanced configuration, it offers professional-grade signal integrity and long-term reliability.

ProX XC-XLRF-3P Competitive Differences

• 3-pin male XLR connector with secure solder point terminals
• Constructed from durable die-cast zinc with a nickel-plated finish
• Compatible with 30 to 14 AWG stranded cables
• Gold- and silver-plated contacts for optimal audio signal clarity
• Metal/plastic chassis for strength and flexibility
• Includes a flexible PVC jacket for added strain relief
• Backed by a limited lifetime warranty

ProX XC-XLRF-3P Description

The ProX XC-XLRF-3P is ideal for creating custom mic cables in professional audio setups. Its 3-point solder terminal offers a strong and stable connection for audio signals, while the durable die-cast zinc shell provides mechanical strength. With support for 30 to 14 AWG stranded cables, this connector is suitable for various custom wiring jobs. Its metal/plastic construction is built to withstand demanding environments, and the flexible PVC jacket protects from wear and tear. Whether you're assembling cables for stage use, broadcast, or studio environments, this connector ensures clear, consistent signal transfer.

XC-XLRF-3P Features

• 3-pin male XLR connector
• Solder-type terminal with 3-point connection
• Gold- and silver-plated contact points
• Compatible with 30 to 14 AWG stranded cables
• Die-cast zinc housing
• Nickel-plated finish
• Flexible PVC jacket
• Durable metal/plastic chassis
• Limited lifetime warranty

XC-XLRF-3P Specifications

• Connector Type: XLR-3 male (solder point)
• Configuration: Balanced
• Cable Type: Not included
• Conductor Gauge Compatibility: 30 to 14 AWG (stranded)
• Shipping Weight: 0.20 lbs
• UPC: 022099559948
