RCF EVOX V15 W | 15in - 133dB | 3500W Three-Way Column System

RCF Evox V15 W  (RCF Evox-V15-W)

Three-Way Active Column PA System

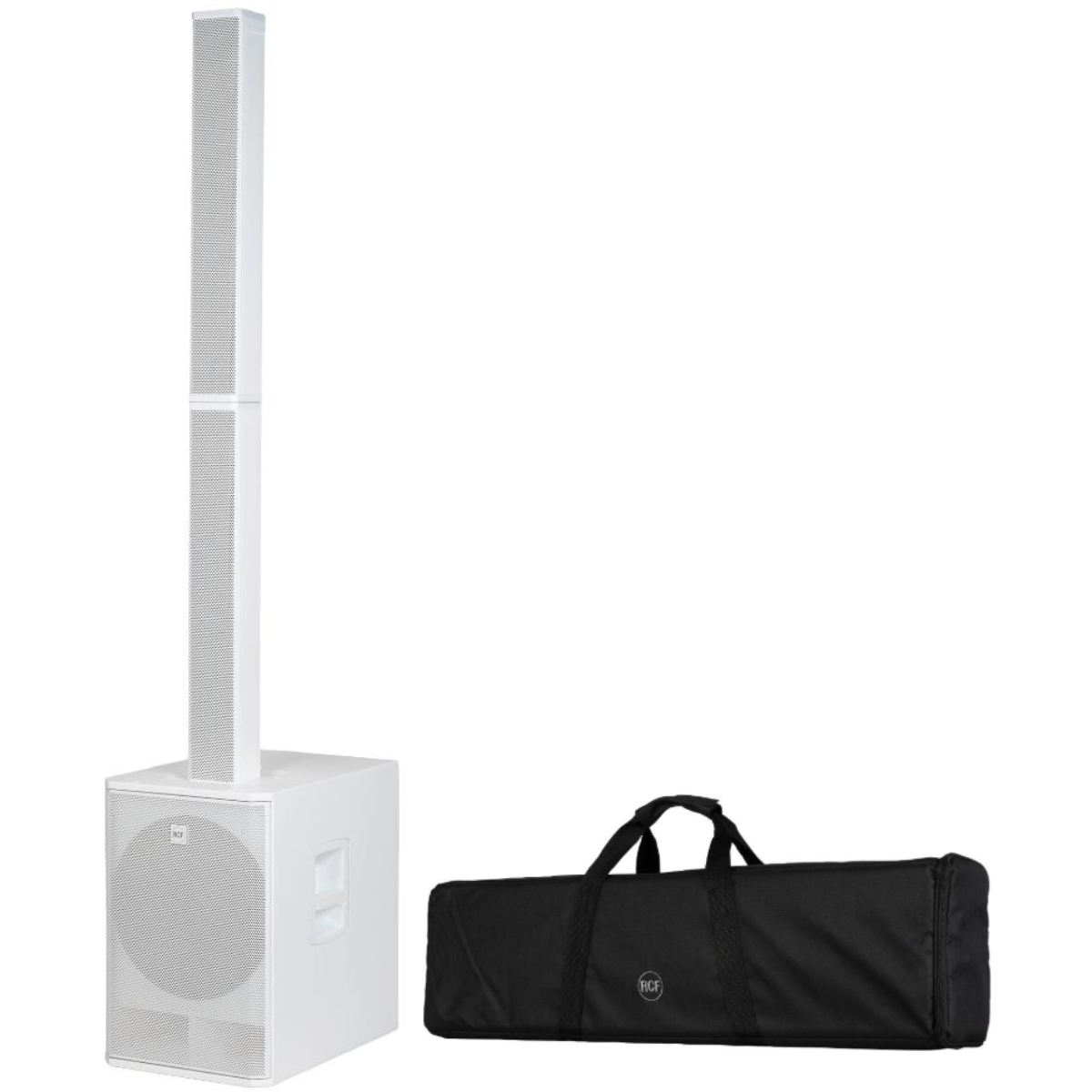

RCF EVOX V15 White is a professional three-way active column loudspeaker system engineered for demanding live sound applications. Combining a powerful 15-inch woofer, ten 4-inch neodymium midrange drivers, and a high-performance compression driver with RCF's True Resistive Waveguide technology, it delivers exceptional vocal clarity, wide coverage, and deep low-frequency performance in a portable column format.

RCF EVOX V15 White Competitive Differences

• True three-way active design with dedicated compression driver, midrange array, and 15-inch woofer
• 3500W peak Class-D amplification with FiRPHASE and Bass Motion Control DSP technologies

RCF EVOX V15 White Description

The RCF EVOX V15 White represents the next generation of professional portable column systems. Designed for bands, DJs, corporate events, rental companies, and live production environments, it combines high-output performance with the fast setup and sleek appearance that made the EVOX series a favorite among professionals.

The system utilizes a dedicated 1.75-inch neodymium compression driver mounted on RCF's True Resistive Waveguide, delivering consistent 120° x 40° coverage and detailed high-frequency reproduction. Ten 4-inch neodymium midrange transducers provide articulate vocal projection and balanced midrange response, while the high-output 15-inch woofer produces deep, controlled bass down to 35Hz.

Power is supplied by a new-generation 3500W peak dual-channel Class-D amplifier that delivers touring-level output with fast transient response and high efficiency. Four onboard DSP presets—Linear, Live, Club, and Voice—allow quick optimization for various applications, while advanced protection circuitry ensures reliable operation.

RCF’s proprietary FiRPHASE and Bass Motion Control technologies further enhance system performance by improving phase response, maintaining natural sound reproduction, and extending low-frequency output without compromising woofer control. The result is a powerful and transparent listening experience across the entire coverage area.

Built with a Baltic birch plywood subwoofer enclosure and durable composite column elements, the EVOX V15 is designed for professional use while remaining portable and easy to deploy. A padded carrying bag for the column array is included for added protection during transport.

EVOX V15 Features

• Professional three-way active column speaker system
• 3500W peak Class-D amplifier
• 133 dB maximum SPL
• 1.75" neodymium compression driver
• True Resistive Waveguide technology
• 10 x 4" neodymium midrange transducers
• 15" high-performance low-frequency woofer
• 120° horizontal x 40° vertical coverage
• FiRPHASE digital signal processing
• Bass Motion Control (BMC) technology
• Four DSP presets: Linear, Live, Club, Voice
• PowerCON TRUE1 TOP power connectors
• Thermal and RMS protection
• Padded column carrying bag included

EVOX V15 Specifications

• Frequency Response: 35 Hz – 20 kHz
• Maximum SPL: 133 dB
• Coverage: 120° Horizontal x 40° Vertical
• Compression Driver: 1 x 1.0" Neo, 1.75" Voice Coil
• Midrange Drivers: 10 x 4.0" Neo, 1.0" Voice Coil
• Woofer: 15" with 3.0" Voice Coil
• Total Amplifier Power: 3500W Peak
• High Frequency Amplifier: 1500W Peak
• Low Frequency Amplifier: 2000W Peak
• Crossover Frequencies: 160 Hz / 1600 Hz
• Input Connectors: Combo XLR/1/4" Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu
• Controls: Volume, Linear, Live, Club, Voice Presets
• Cooling: Convection
• Power Connections: PowerCON TRUE1 TOP In/Out
• Cabinet Material: Baltic Birch Plywood / PP Composite
• Grille: Steel
• Color: White (RAL 9003)
• Height: 87.52 in (2223 mm)
• Width: 16.14 in (410 mm)
• Depth: 23.82 in (605 mm)
• Weight: 104.7 lb (47.5 kg)
• Shipping Weight: 114.6 lb (52 kg)

What's In The Box

• RCF EVOX V15 White Powered Column System
• Column Array Sections
• Padded Column Carrying Bag
• Power Cable
• User Documentation
