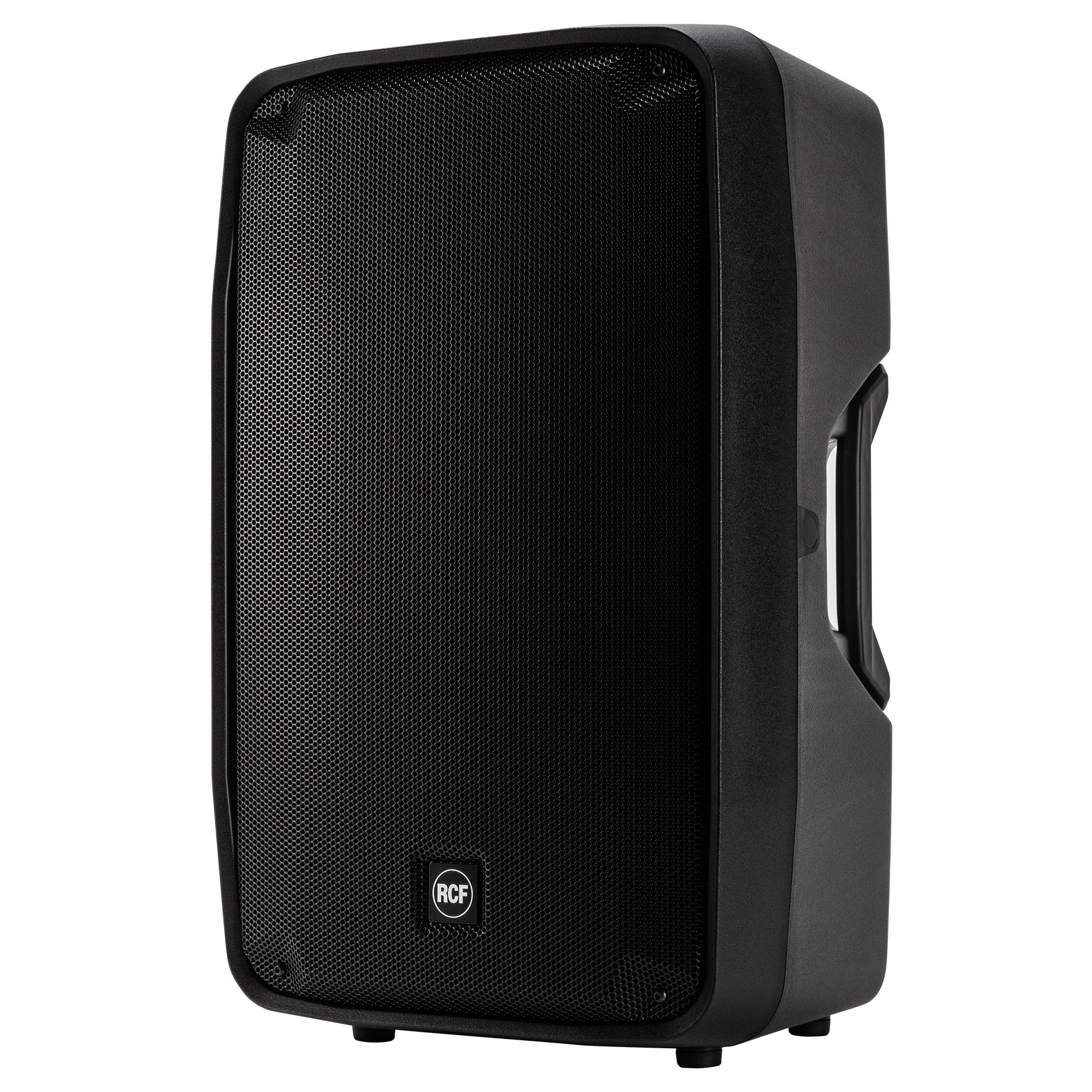

RCF HD15A MK5 | 15in - 130dB

RCF HD 15A  (RCF HD-15 A)

LIVE SOUND
HD 15-A
ACTIVE TWO-WAY SPEAKER
130 DB MAX SPL
1400 WATTS 2-WAY PEAK POWER
DSP PROCESSING WITH FIRPHASE
LIGHTWEIGHT COMPOSITE CABINET

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

130 dB Max SPL
1400 Watts 2-way peak power
DSP Processing with FiRPHASE
1.0" Compression Driver, 1.75” v.c.
15” Woofer, high power
Lightweight Composite Cabinet
90°x60°, wide dispersion constant directivity horn
Silent Fanless Class-D Amplifier

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

HIGH QUALITY TRANSDUCERS
Woofers and compression drivers are precision built taking advantage of RCF’s assembly technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards


POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

RENTAL PROOF
D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.

HIGH DEMAND APPLICATIONS
The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.


SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.0'', 1.75'' v.c

WOOFER:
15'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 top, 1 x M10 bottom, 2 x M10 side

HANDLES:
1 Top, 2 Side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
714 mm / 28.11 inches

WIDTH:
442 mm / 17.4 inches

DEPTH:
397 mm / 15.63 inches

WEIGHT:
22 kg / 48.5 lbs
Shipping informations
PACKAGE HEIGHT:
700 mm / 27.56 inches

PACKAGE WIDTH:
450 mm / 17.72 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
24.5 kg / 54.01 lbs


Part #
13000590
HD 15A
115V
EAN 8024530016678
