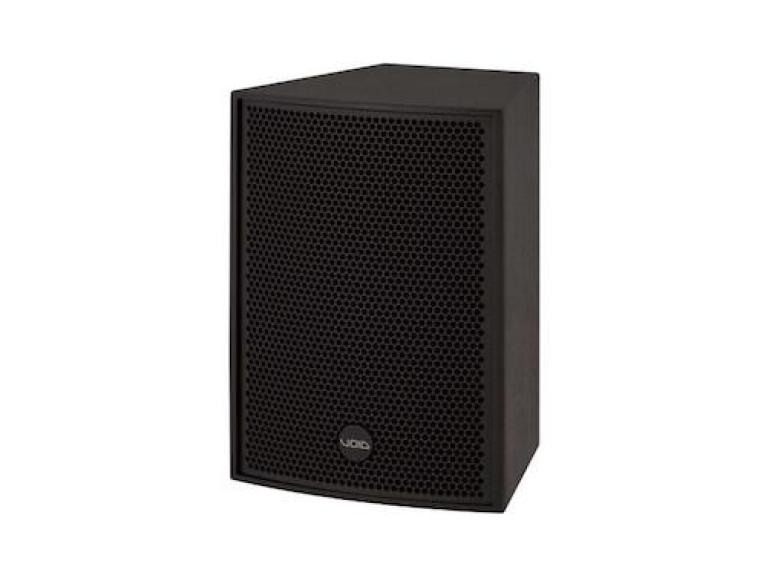

VOID Acoustics Venu 12

Void Venue 12  (VOID Acoustics Venu12)

The 12” based Venu 12 has been designed to offer everything you could ask for from an installation loudspeaker. The entire Venu series has been created from the demands of many leading installation contractors and engineers around the world.

There are many features that make the passive two-way Venu 12 so convenient to install and use: the Easy Hang wall bracket that supports the enclosure, either vertically or horizontally, and requires only one set of hands to attach the enclosure; the Phoenix connector with link through for quick and reliable hook ups; the rotatable 90° horizontal by 60° vertical high frequency horn allowing the correct dispersion to be maintained in vertical or horizontal mounting positions; electronic high frequency protection for increased reliability; M8 flying points for horizontal ceiling suspension; weather-resistant grille and fittings suitable for beach bars and other corrosive environments; the rotatable logo to allow for correct display in either vertical or horizontal positions; and an enclosure made entirely from 15 mm multi-laminate birch plywood.

Features:

Compact and unobtrusive appearance
Rotatable 90°H x 60°V HF waveguide
12" low frequency driver
1" high frequency compression driver
Textured polyurethane finish, optional custom colours
Multiple internal M8 rigging points
Weather-resistant, perforated steel grille

Specifications:

Frequency Response 50 Hz - 22 kHz ±3 dB
Efficiency 98 dB 1w/1m
Crossover Point 1.9 kHz passive
Impedance 8 ohms
Power Handling 400 Watts AES
Maximum Output 124 dB cont, 127 dB peak
Driver Configuration 1 x 12" LF, 1 x 1" HF compression driver
Dispersion 90°H x 60°V rotatable
Protection HF electronic device
Connectors 1 x Phoenix with link out
Height 522 mm (20.6")
Width 385 mm (15.2")
Depth 330 mm (13")
Weight 19.5 kg (43 lbs)
Enclosure 15 mm birch plywood
Finish Textured polyurethane
Grille Weather-resistant perforated steel with foam filter
