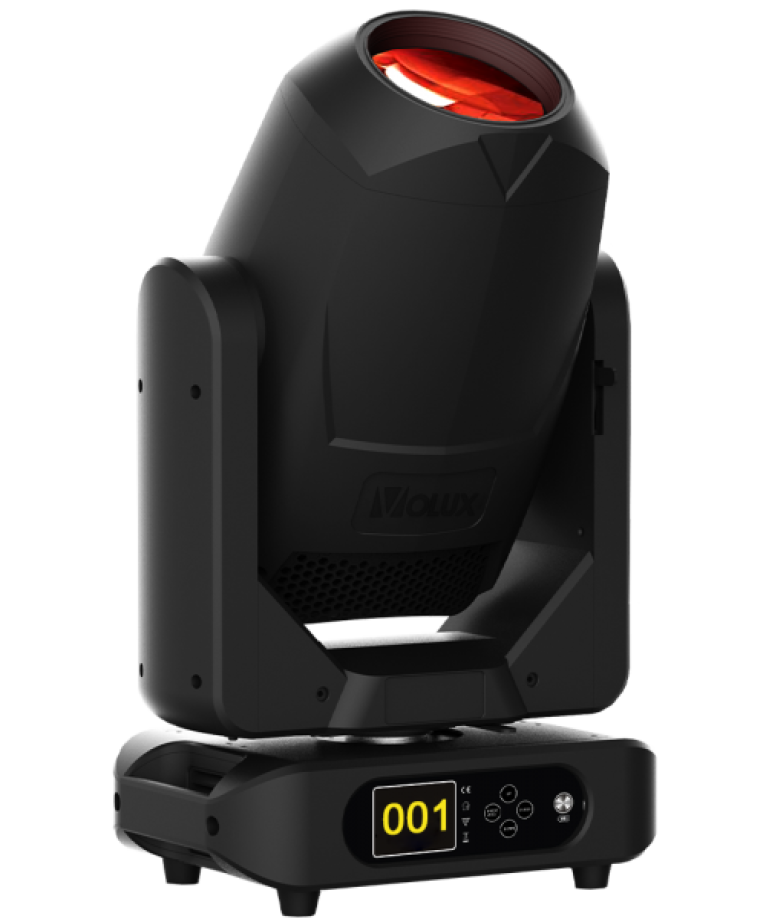

Volux Spectra 300 | CMY 300 Watts - 3.5 to 46 Degrees

Volux Lighting VLX300SP  ( 300W LED CMY Spot Moving Head)

Spectra is a compact, LED-powered, CMY spot luminaire designed to provide immense output with an exceptionally wide zoom range that maintains a sharp focus with extensive colors and stunning effects to maximize functionality. Powered by a 300W LED engine, Spectra delivers bright, crisp projections with a 3.5º – 46º zoom range, complemented by an extensive color palette featuring CMY + CTO color mixing along with a dedicated 11-slot dichroic color wheel. Users can choose from 20 hand-selected gobos with auto-focus that can flood surfaces with sharp patterns and customize beams with iris and an 8-facet prism for uncompromised effects.

FEATURES:

300W LED Engine
13,000 Lumen Output

Wide Zoom Range
3.5 - 46º Motorized Zoom

Crisp Optics
Flat Field Projection + Auto Focus

Vibrant Color Mixing
CMY/CTO Color Mixing + 11 Dichroic Colors

Dynamic Effects
20 Gobos | Prism | Iris

In Depth
• 300W 7,000K LED Engine – 50,000 Hour Life

• 13,000 Lumen Output

• Linear 16-Bit Dimming w/ DMX Adjustable PWM

• 3.5 – 46º Zoom Range

• Motorized Focus + Auto-Focus

• 7-Slot Interchangeable Rotating Gobo Wheel

• 14-Slot Fixed Gobo Wheel

• On-Board + DMX Adjustable Fan Operation

• Variable CMY + CTO Color Mixing

• (1) 11 Slot Dichroic Color Wheel

• Linear Frost Filter

• 16-Blade Motorized Iris + Macros

• 8-Facet Rotating Circular Prism

• DMX, ArtNet, RDM, (W-DMX Optional)

• Battery Powered On-Board Interface

• PowerCon True1 Connector

• 5-Pin XLR Connector

• 25 Channel DMX Mode

Physical:
Total Height (Head Up): 22.3″ / 568mm

Height (Head 90º): 16.1″ / 410mm

Total Width: 13.2″ / 337mm

Head Length: 15.3″ / 390mm

Net Weight: 33lbs / 15kg

Electrical:
LED Engine: 300W

Total Power Consumption: 500W

Voltage: 120-240V AC

SPECIFICATIONS:

Optical
Source: 300W LED
Color Temperature: 7,000K
Luminous Flux: 12,000 Lumens
Lux: (3.5°) 36,000 lux | (46°) 956 lux @ 5M
CRI: 70+
PWM: 1,200Hz / 13,672Hz (DMX Adjustable)
Source Life Expectancy: 50,000 Hours
Zoom Range: 3.5° – 46° High-Speed Motorized Zoom
Lens diameter: 120mm
Focus: 16-Bit Motorized + Auto Focus
COLOR SYSTEM
Color Mixing: Linear CMY + CTO
Color Wheel: 11 Dichroic Colors + UV
DYNAMIC EFFECTS
Rotating Gobos: 7 rotating gobos + open, interchangeable, indexing
Static Gobos: 14 static gobos + scrolling + gobo shake
Gobo Size: Outer: 22.9 mm – Image: 15 mm – Thickness: 1.1 mm
FX Generator: FX macros for Iris
Prism (Standard): 8-facet circular rotating, indexable
Frost: Linear
Iris: Motorized iris
BODY
Pan Range: 540°
Tilt Range: 270°
Pan/Tilt Resolution: 16-bit
Pan/Tilt Locks: Multi-position pan/tilt locks
Feedback: Automatic repositioning
Control
Protocols: DMX512, RDM, Art-Net*, W-DMX (optional)
DMX channels: 25ch Standard
W-DMX: Optional
RDM: RDM for remote monitoring and settings
Display: LCD high-resolution display with auto-rotate
Firmware Upgrade: USB – DMX interface (not included)
Electronics
Dimmer: 16-bit linear 0 ~ 100% electronic dimmer
Strobe / Shutter: 1 – 20 Hz, electronic
Display Battery: 3.7v self-charging lithium-ion battery backup (not included)
Operating Temperature: -10° ~ +50°
LED Control: DMX adjustable PWM, flicker-free operation
Electrical
Power Supply: 100-240V – 50/60Hz
Max Power Consumption: 500W
Power factor: >0.96
Physical
Ingress Protection Rating: IP20
Cooling: Low noise, low-velocity multi fan-array
Rigging: Quick-turn omega bracket
Pan / Lilt Lock: 0 & 90 locking positions
Signal connection: 5-Pin XLR IN/THRU
Power connection: Neutrik powerCON TRUE1
Dimensions (WxHxD): 13.2″ x 22.3′ x 15.3”
Weight: 33lbs / 15kg
What’s Included
Spectra 300 Spot
PowerCON TRUE1 Power Cable
5-Pin XLR Cable
Omega Bracket
Safety Cable
User Manual
Optional Accessories:
1-Unit Flight Case
2-Unit Flight Case
Vi-Fi® W-DMX Transmitter
DMX-UpData Software Uploader
Omega Brackets w/ Pre-Installed Folding Clamps
