Yamaha DZR-10
(Yamaha DZR10)

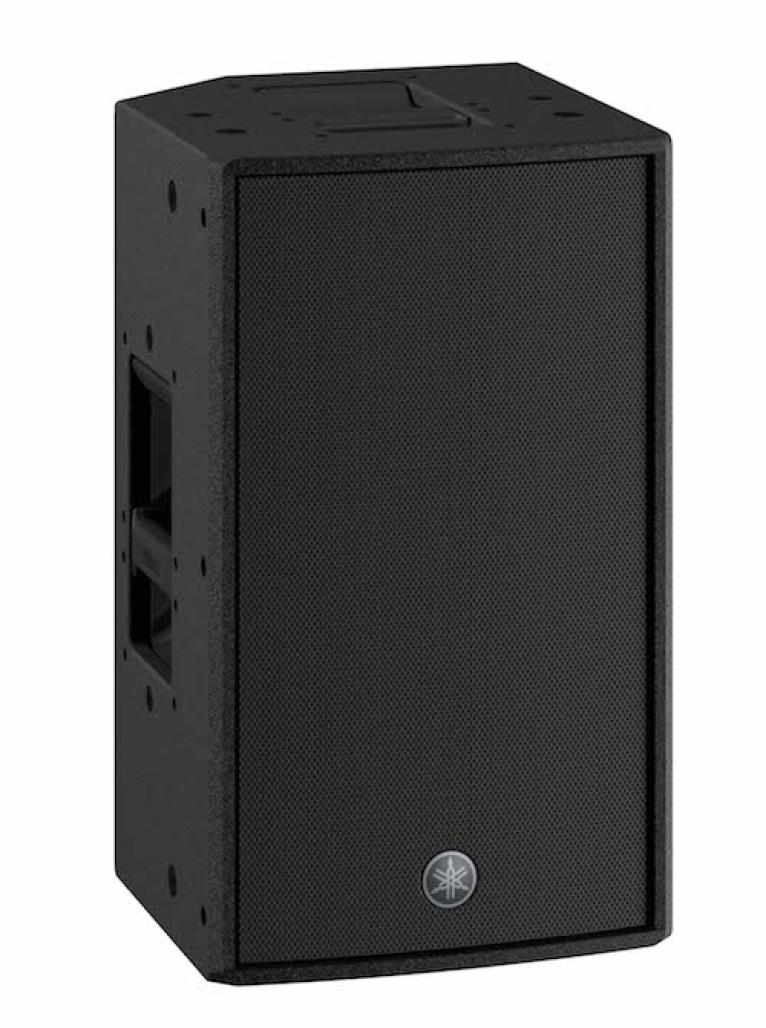

Yamaha DZR10 10" 2-Way Bi-Amped Powered Loudspeaker
The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Features:
2-way powered loudspeaker with a 2" HF and a 10" LF
Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Floor monitoring setting
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Specifications:
Frequency Range (-10 dB) 44Hz - 20kHz
Coverage Angle H 90° x V 60°
Power Rating 2000W (LF:1000W, MF/HF: 1000W)
Maximum SPL 137dB SPL
LF Driver 10" Cone, 3" Voice Coil, Neodymium magnet
HF Driver 2" Voice coil, 1" Throat compression driver, Titanium diaphragm, Neodymium magnet
Dimensions (H x W x D) 21.1" (537 mm) x 12.4" (537 mm) x 13.6" (345 mm)
Weight 39.5 lbs (17.9 kg)
