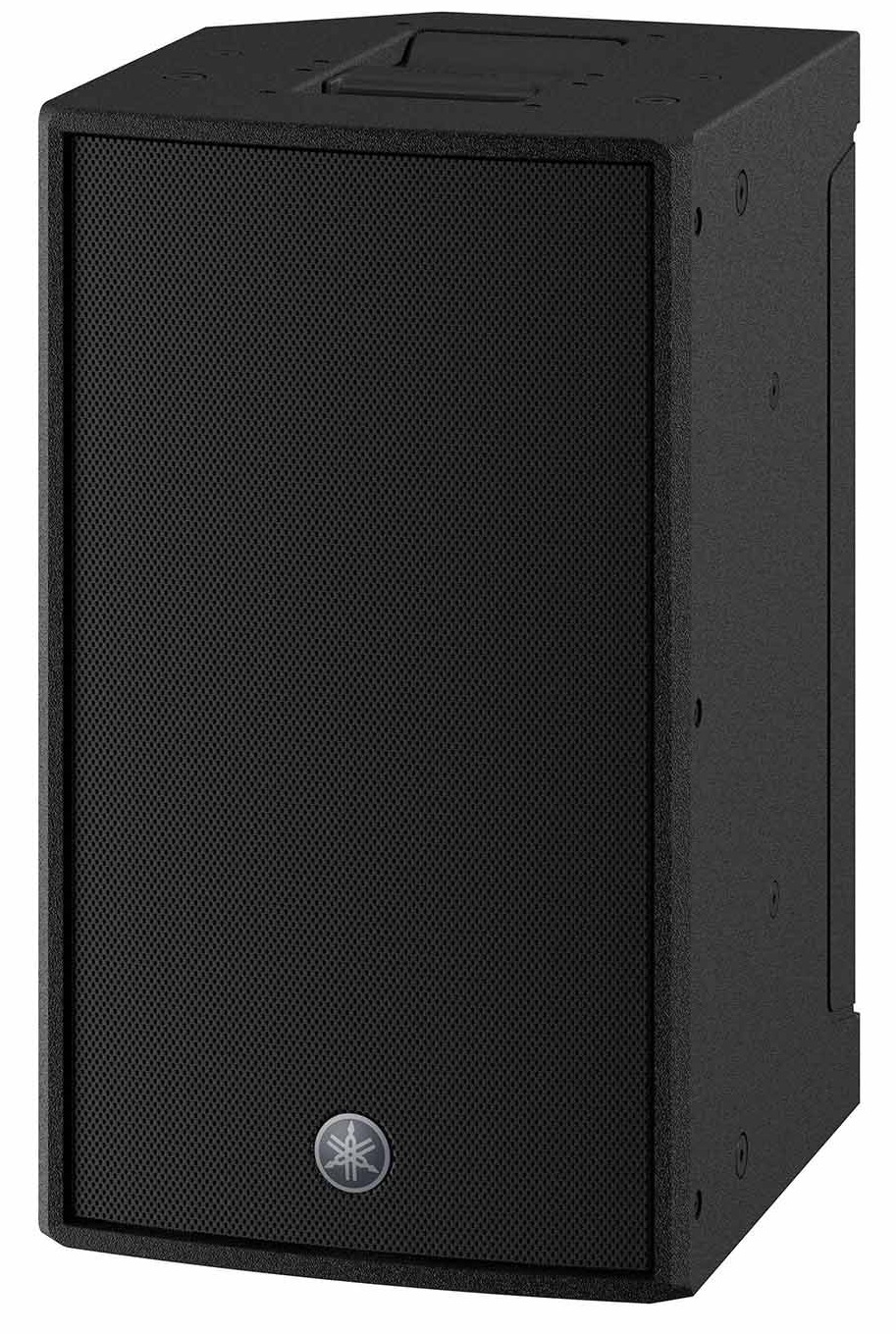

Yamaha DZR10-D | 10in - 137dB - Dante

Yamaha DZR 10D  (Yamaha DZR-10 D)

High-Performance 10" Powered Loudspeaker with Dante Connectivity

The Yamaha DZR10-D is a premium 2-way bi-amped powered loudspeaker that delivers outstanding clarity, powerful output, and intelligent DSP processing. Designed for professional audio applications, it features Dante connectivity, a high-powered Class-D amplifier, and an impressive maximum SPL of 137dB. With a frequency range of 44Hz-20kHz and Yamaha’s advanced FIR-X tuning, the DZR10-D provides top-tier sound reinforcement for live sound, installed systems, and stage monitoring.

Yamaha DZR10-D Competitive Differences

• 10" LF driver with a neodymium magnet and a 2" HF compression driver with a titanium diaphragm
• Class-D amplifier delivering an impressive 2000W peak power
• Maximum SPL of 137dB for clear and powerful sound
• Advanced 96kHz DSP processing with FIR-X tuning for minimal phase distortion
• Built-in Dante I/O (2 in/2 out) with sample rate conversion (SRC) for compatibility with 48kHz devices
• Customizable DSP settings via an intuitive LCD display
• Durable plywood cabinet with premium-grade Polyurea coating
• Multiple rigging and mounting options, including rotatable horn and U-bracket compatibility
• Dual pole socket (0° or -7° tilt) for flexible placement
• Floor monitor angle of 50° for stage monitoring applications
• Highly reliable protection circuits and D-Contour dynamic EQ

Yamaha DZR10-D Description

The Yamaha DZR10-D is part of Yamaha’s advanced DZR series, offering best-in-class SPL performance, DSP processing, and premium low-frequency response. Engineered for maximum power and precision, this loudspeaker incorporates a powerful 2000W Class-D amplifier, ensuring high efficiency and minimal distortion. With a robust plywood cabinet coated in durable Polyurea, the DZR10-D is built for rigorous professional use. Dante connectivity allows seamless integration into digital audio networks, supporting 2-in/2-out routing with built-in sample rate conversion. The onboard 96kHz DSP with FIR-X tuning provides high-resolution sound and significantly reduces latency, making it an excellent choice for demanding live performances, installations, and production environments. Whether used as a main speaker, monitor, or part of a larger system, the DZR10-D delivers consistent, high-fidelity audio.

DZR10-D Features

• High-powered 2-way bi-amped speaker with advanced DSP
• 10" LF driver with 3" voice coil and neodymium magnet
• 2" HF voice coil with 1" throat compression driver
• FIR-X tuning with FIR filtering for superior sound clarity
• Built-in 96kHz AD/DA converters
• High-efficiency 2000W Class-D amplifier
• Intuitive LCD display for DSP control and presets
• Dante I/O (2 in/2 out) with 1000BASE-T Ethernet support
• USB host port for memory storage and data transfer
• Multiple rigging points for flexible mounting
• 50° floor monitor angle for stage use
• Rotatable horn for optimized dispersion
• Durable enclosure with premium Polyurea coating

DZR10-D Specifications

• Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
• Frequency Range (-10dB): 44Hz - 20kHz
• Coverage: 90° horizontal x 60° vertical (rotatable)
• Floor Monitor Angle: 50°
• LF Driver: 10" cone, 3" voice coil, neodymium magnet
• HF Driver: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
• Crossover: 1.8kHz (FIR-X)
• DSP Sampling Rate: 96kHz
• Max SPL Output: 137dB SPL
• Amplifier Class: Class-D
• Power Rating:
  • Dynamic: 2000W (LF: 1000W, HF: 1000W)
  • Burst (20ms): 1100W (LF: 1000W, HF: 100W)
  • Continuous: 950W (LF: 850W, HF: 100W)
• Analog Inputs: 2 x Combo (XLR/TRS), max +24dBu
• Analog Outputs: 2 x XLR3-32 (CH1: THRU, CH2: THRU or DSP OUT)
• Digital I/O: Dante: 2 in / 2 out via etherCON CAT5e, 1000BASE-T
• USB: USB 2.0 host port for memory storage
• Cooling: Fan cooling with variable speeds
• Power Consumption: 45W (idle), 150W (1/8 power)
• Handles: Aluminum die-cast, top x1, side x1
• Pole Socket: 35mm, dual angles (0° or -7°)
• Rigging Points: M10 x8, M8 x2
• Enclosure Material: Plywood with Polyurea coating
• Color: Black/White
• Dimensions (W x H x D): 12.4" x 21.1" x 13.6" (315mm x 537mm x 345mm)
• Weight: 39.5 lbs (17.9kg)
• Optional Accessories: U-brackets (UB-DZR10H/V), speaker cover (SPCVR-DZR10)

What’s in the Box

• Yamaha DZR10-D Powered Loudspeaker
• Power Cable
• User Manual

Yamaha DZR10-D Manual

Download the Yamaha DZR10-D Manual
