Yamaha NY64-D | Dante I/O Card for TF Mixers

Yamaha NY64D  (Yamaha NYD-64)

Expands the TF-Series Routing Capacities
24-Bit/48 kHz Digital Audio
Transmits & Receives Up to 128 Channels
Plugs into Expansion Slot of Mixer

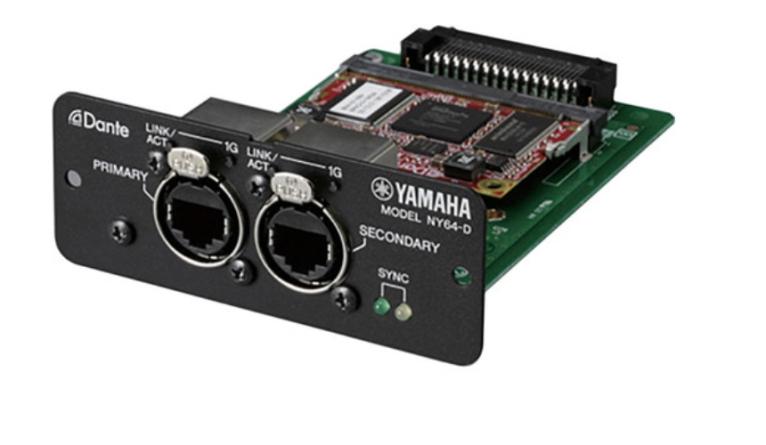

The NY64-D from Yamaha is an I/O expansion card for the TF-series console that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 24-bit/48 kHz digital audio data via a Dante audio network. It is also compatible with the Tio1608-D Dante-equipped I/O rack (sold separately) and with this setup, it becomes possible to create a stage-box system with up to 48 inputs and 24 outputs.

General
I/O
Connector 1 1 x RJ45/etherCON
Connector 2 1 x RJ45/etherCON
Physical
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 0.905 lb
Box Dimensions (LxWxH) 8.8 x 7.1 x 3.6"
