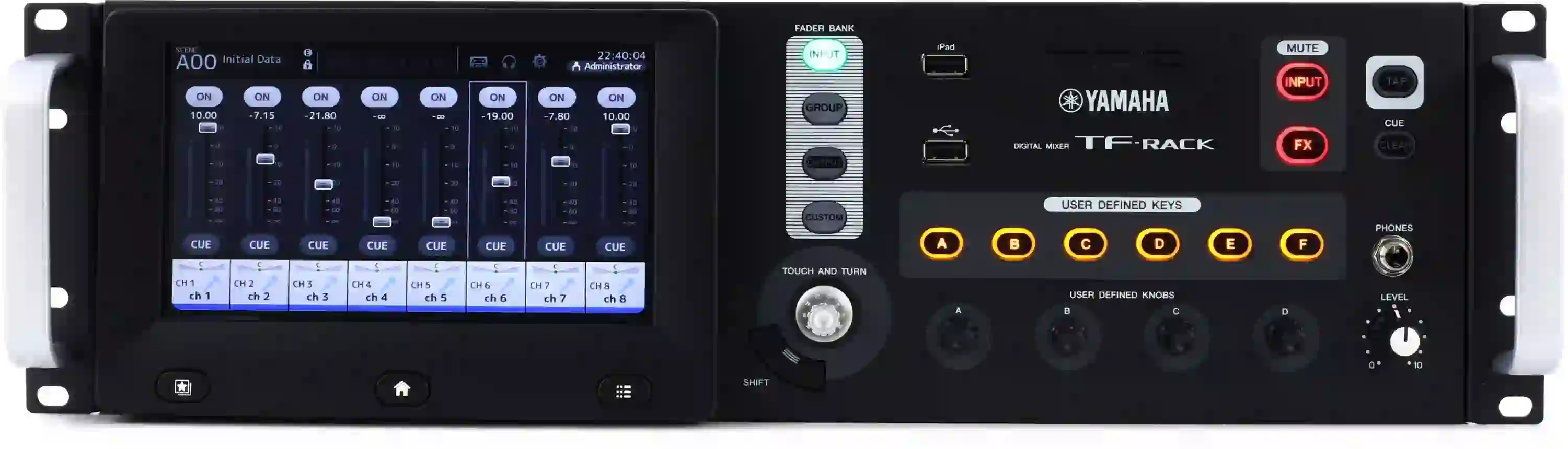

Yamaha TF-Rack | Rack-Mount Digital Mixer with TouchFlow

Standard Discount:
$1,999.99
Store Reseal:
$1,684.99
This item is in stock!

Warranty Options
Condition
This item is brand new, factory sealed. It includes the full factory warranty and all applicable factory rebates.
Description
Reviews
Questions
Financing  (3)

Yamaha TF Rack  (Yamaha TFrack)

Compact Digital Mixer for Professional Audio Control

The Yamaha TF-Rack is a versatile, compact digital mixing solution that offers the renowned performance of the TF Series in a rack-mountable form. Perfect for live sound reinforcement, corporate events, and installations, this mixer combines intuitive touch panel control with advanced sound processing features, ensuring high-quality audio in any environment. Its space-saving design makes it ideal for limited setups, while its user-friendly interface allows for smooth operation by both beginners and experienced engineers.

Yamaha TF-Rack Competitive Differences

  • TouchFlow Operation™ optimized for touch panel control
  • Recallable D-PRE™ microphone preamplifiers for superior sound quality
  • 1-knob COMP™ and 1-knob EQ™ for simplified audio adjustments
  • Scene memory with up to 200 pre-programmed or customized scenes
  • QuickPro Presets™ designed in collaboration with top audio engineers
  • Expandable I/O capability with up to 64 inputs and 40 outputs via Dante Stagebox
  • Compact, rack-mount design perfect for space-constrained environments

Yamaha TF-Rack Description

The Yamaha TF-Rack is a compact, all-in-one digital mixer that brings the power of the TF Series to a rack-mount form factor. Designed with Yamaha’s groundbreaking TouchFlow Operation™, it enables intuitive touch control, making it easy for users of all experience levels to achieve optimal sound mixes. Whether used for live sound reinforcement, installations, or corporate events, the TF-Rack offers professional-level audio performance with an emphasis on ease of use. With 16 mic/line inputs, 1 stereo line input, and 16 outputs, the TF-Rack is equipped to handle a variety of applications. It features Yamaha’s D-PRE™ microphone preamplifiers, known for their pristine sound quality, and offers scene memory that can store up to 200 scenes for instant recall. The inclusion of the 1-knob COMP™ and 1-knob EQ™ provides fast and easy audio adjustments, while the expandable I/O options make it a flexible choice for larger setups. Yamaha has also included QuickPro Presets™, developed in collaboration with industry professionals, allowing even novice users to achieve professional-level sound quickly. The TF-Rack can be expanded with optional Tio1608-D I/O racks, offering a total of 64 inputs and 40 outputs when fully configured, making it suitable for larger productions.

TF-Rack Features

  • TouchFlow Operation™ with touch panel for intuitive control
  • Scene memory: Stores up to 200 scenes for instant recall
  • 1-knob COMP™ and 1-knob EQ™ for simplified sound adjustments
  • 16 mic/line inputs (XLR/TRS combo) + 1 stereo line input (RCA)
  • 16 outputs (8 XLR + 8 TRS)
  • Expandable I/O via optional NY64-D Dante card (up to 64 inputs/40 outputs)
  • QuickPro Presets™ for professional-grade microphone and output settings
  • Recallable D-PRE™ microphone preamplifiers for natural, clear sound
  • 8 onboard effects processors (reverb, delay, modulation, multiband compression)
  • Wireless control through TF StageMix™ for iPad and MonitorMix for personal AUX mixing

TF-Rack Specifications

  • Mixing capacity: 40 input channels (32 mono, 2 stereo, 2 return)
  • Aux buses: 20 (8 mono, 6 stereo)
  • Stereo buses: 1
  • Sub buses: 1
  • Input channels: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA)
  • Outputs: 16 (8 XLR + 8 TRS)
  • Expansion slot: 1 (for NY64-D Dante card)
  • Onboard processors: 8 effects + 10 GEQ
  • Sampling rate: 48 kHz
  • Signal delay: Less than 2.6 ms (INPUT to OMNI OUT, 48 kHz)
  • Fader resolution: 10-bit, +10 dB to –138 dB, –∞ dB all faders
  • Total harmonic distortion: Less than 0.05%, 20 Hz–20 kHz
  • Frequency response: +0.5, –1.5 dB (20 Hz–20 kHz)
  • Dynamic range: 110 dB (DA converter), 108 dB (input to OMNI OUT)
  • Hum & noise level: –128 dBu (equivalent input noise, max gain)
  • Residual output noise: –85 dBu (ST master off)
  • Crosstalk: –100 dB (adjacent INPUT/OMNI OUT channels)
  • Power requirements: 100–240 V, 50/60 Hz
  • Power consumption: 85W
  • Dimensions (W x H x D): 18-7/8 in x 5-1/4 in x 16-1/8 in (480 mm x 132 mm x 409 mm)
  • Net weight: 20.3 lbs (9.2 kg)

What's In The Box

  • Yamaha TF-Rack digital mixer
  • Power cord
  • Quick Guide
  • Rubber stoppers (4)
  • NUENDO Live DAW software

TF-Rack Manual
